9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

???µN???N?N?N?N?N? ???° ???»?°????N?N? N?N?N??°????N?N?

9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

110 - FEEDER HOUSE

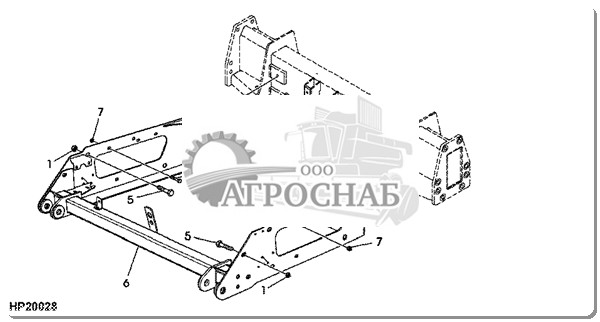

FEEDERHOUSE LIFT SUPPORT

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 14M7291 Flange Nut 8 X X M16
2 T119912 Washer 4 X X
3 19M8035 Cap Screw 4 X X M16 X 35
4 19M7789 Screw 8 X X M12 X 30
5 19M7828 Screw 8 X X M16 X 100
6 AH230261 Support 1 X X (SUB FOR AH207339, AH222597 OR AH221181)
7 14M7299 Flange Nut 8 X X M12

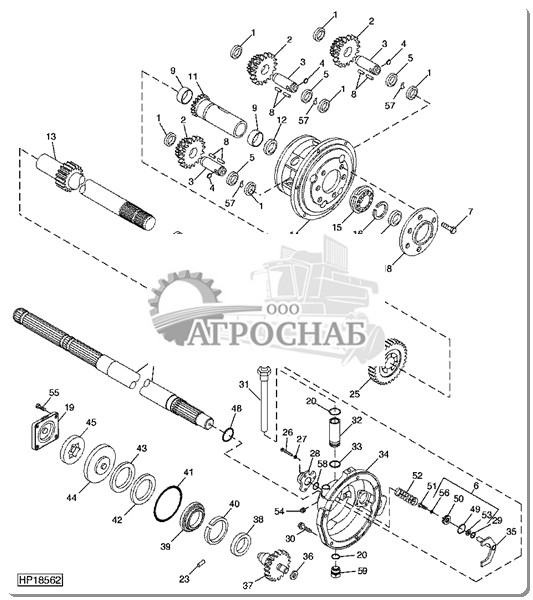

Reverser Gear Box

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 R66197 Thrust Washer 6 X X
2 Z12714 Ring Gear 3 X X
3 Z61813 Pin 3 X X
4 H871R Ball 3 X X
5 R33088 Washer 3 X X
6 AH208250 Piston 1 X X
7 19M7166 Cap Screw 6 X X M10 X 20
8 Z61817 Pin 174 X X (A)
9 AH150686 Needle Bearing 2 X X
10 H234410 Shaft 1 X X (SUB FOR H202940)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H207015 Gear 1 X X Z = 21
12 E53699 Seal 1 X X
13 H177985 Shaft 1 X X
14 H156091 Cover 1 X X
15 AZ49013 Ball Bearing 1 X X
16 R39081 Snap Ring 2 X X
17 AZ49370 Seal 2 X X
18 H204870 Housing 1 X X
19 H156095 Housing 1 X X (B)
H174445 Cover 1 X X (C)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
20 R26375 O-Ring AR X X
21 AZ49371 Ball Bearing 1 X X
22 Z62549 Snap Ring 1 X X
23 H75358 Dowel Pin 1 X X
24 Z62147 Shifter 1 X X
25 H170781 Gear 1 X X Z = 40
26 19M7165 Cap Screw 3 X X M8 X 55
27 12M7065 Lock Washer 3 X X 8 mm
28 H224450 Cap 1 X X (SUB FOR H177708)
29 Z70693 Seal 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
30 19M7810 Screw 6 X X M10 X 80
31 AH167179 Dipstick 1 X X
32 H173057 Spacer 1 X X
33 R26906 O-Ring 1 X X
34 H204934 Housing 1 X X
35 AZ55776 Shifter 1 X X
36 M800578 Ball Bearing 1 X X
37 H165464 Spur Gear 1 X X Z = 19
38 JD7678 Ball Bearing 1 X X
39 H165463 Bearing 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
40 M1007T Snap Ring 1 X X
41 U10776 O-Ring 1 X X
42 H82233 Bushing 1 X X
43 H82232 Washer 1 X X
44 H82234 Plate 1 X X
45 AH128528 Rotor 1 X X
46 16M2556 Rivet 3 X X 8 X 45 mm
47 AH148894 Ring Gear 1 X X (B)
AZ49362 Gear 1 X X (C)
48 T61327 O-Ring 1 X X (Use with H202940) (SUB H223849)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
H223849 Ring 1 X X (Use with H234410)
49 Z70694 Seal 1 X X
50 Z70692 Piston 1 X X
51 19M7407 Cap Screw 1 X X M8 X 25
52 Z70695 Compression Spring 1 X X
53 R41339 Shim 1 X X
54 15M7032 Pipe Plug 1 X X
55 19M7786 Screw 4 X X M10 X 30
56 12M7022 Lock Washer 1 X X 8.200 mm
57 H89617 Spacer 3 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
58 T22828 O-Ring 1 X X
59 AH229778 Drain Plug 1 X X
.. AH204585 Gear Case 1 X X (B)
.. AH225337 Gear Case 1 X X (C) (SUB FOR AH206938)

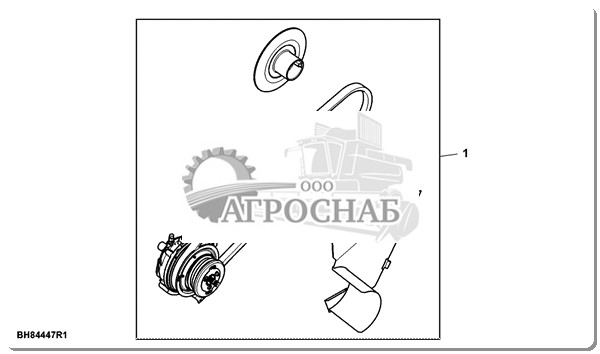

Attachment, Feederhouse Drive Conversion, High Torque Variable Speed

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 BH84447 Drive Kit 1

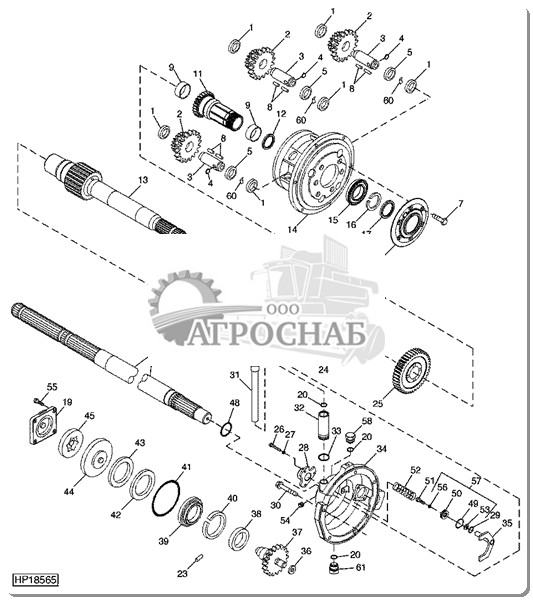

REVERSER GEAR BOX (HIGH TORQUE VARIABLE DRIVE ONLY)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 R66197 Thrust Washer 6 X X
2 CE18522 Gear 3 X X Z = 29
3 Z61813 Pin 3 X X
4 H871R Ball 3 X X
5 R33088 Washer 3 X X
6 R39081 Snap Ring 1 X X
7 19M7166 Cap Screw 6 X X M10 X 20
8 Z61817 Pin 174 X X (A)
9 AH215108 Needle Bearing 2 X X
10 H234410 Shaft 1 X X SUB FOR H202940
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H213511 Gear 1 X X Z = 26
12 AH216871 Seal 1 X X
13 H213514 Shaft 1 X X
14 H213513 Cover 1 X X
15 AH213106 Ball Bearing 1 X X
16 H213596 Snap Ring 1 X X
17 AH215259 Seal 1 X X
18 H213510 Housing 1 X X
19 H156095 Housing 1 X X
20 R26375 O-Ring AR X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 AZ49371 Ball Bearing 1 X X
22 Z62549 Snap Ring 1 X X
23 H75358 Dowel Pin 1 X X
24 Z62147 Shifter 1 X X
25 H213512 Gear 1 X X Z = 41
26 19M7165 Cap Screw 3 X X M8 X 55
27 12M7065 Lock Washer 3 X X 8 mm
28 H224450 Cap 1 X X (SUB FOR H177708)
29 Z70693 Seal 1 X X
30 19M7810 Screw 6 X X M10 X 80
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 AH167179 Dipstick 1 X X
32 H173057 Spacer 1 X X
33 R26906 O-Ring 1 X X
34 CE18835 Housing 1 X X
35 AZ55776 Shifter 1 X X
36 M800578 Ball Bearing 1 X X
37 H165464 Spur Gear 1 X X Z = 19
38 JD7678 Ball Bearing 1 X X
39 H165463 Bearing 1 X X
40 M1007T Snap Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
41 U10776 O-Ring 1 X X
42 H82233 Bushing 1 X X
43 H82232 Washer 1 X X
44 H82234 Plate 1 X X
45 AH128528 Rotor 1 X X
46 16M2556 Rivet 3 X X 8 X 45 mm
47 CE18524 Ring Gear 1 X X
48 T61327 O-Ring 1 X X (SUB H223849) (USE WITH H202940)
H223849 Ring 1 X X (USE WITH H234410)
49 Z70694 Seal 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
50 Z70692 Piston 1 X X
51 19M7407 Cap Screw 1 X X M8 X 25
52 Z70695 Compression Spring 1 X X
53 R41339 Shim 1 X X
54 15M7032 Pipe Plug 1 X X
55 19M7786 Screw 5 X X M10 X 30
56 12M7022 Lock Washer 1 X X 8.200 mm
57 AH208250 Piston 1 X X
58 R39112 Fitting 2 X X
59 CE18531 Seal 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
60 H89617 Spacer 3 X X
61 AH229778 Drain Plug 1 X X
.. AH225334 Gear Case 1 X X (B) (SUB FOR AH213087)

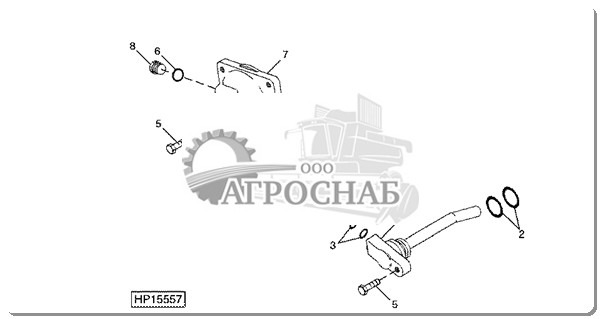

REVERSER GEAR BOX - CONTINUED

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH125228 Fitting 1 X X (A)
H174446 Plug 1 X X (B)
2 R495R O-Ring 2 X X
3 R394R O-Ring 4 X X
4 H156096 Tube 1 X
H156096 Tube 1 X (E)
CE18901 Tube 1 X X (C) (F)
5 19M7786 Screw 5 X X M10 X 30
6 R26375 O-Ring 2 X X
7 H156095 Housing 1 X X (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
H174445 Cover 1 X X (B)
8 R39112 Fitting 1 X X
.. AH204585 Gear Case 1 X (A)
.. AH204585 Gear Case 1 X (E)
.. AH206938 Gear Case 1 X X (B)
.. AH225334 Gear Case 1 X X (C) (SUB FOR AH213087)

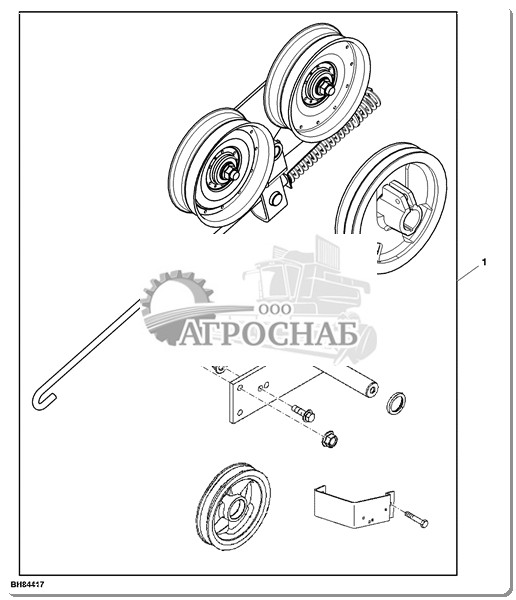

Feeder House Drive Conversion, Attachment

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 BH84417 Drive Kit 1 X X

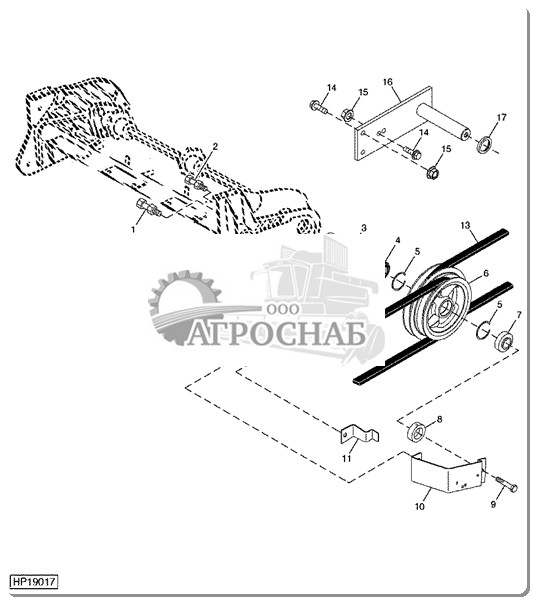

Upper Drive Shaft, Sheave and Mountings (Fixed Speed With Reverser)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7790 Screw 1 X X M12 X 35
14M7299 Flange Nut 1 X X M12
2 19M7789 Screw 1 X X M12 X 30
14M7299 Flange Nut 1 X X M12
3 HXE31772 Shaft 1 X X SUB FOR AH125454
4 JD9301 Ball Bearing 1 X X
5 P46874 Snap Ring 2 X X
6 H204874 Pulley 1 X X
H174585 Pulley 1 X X (A)
7 JD9356 Ball Bearing 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AZ62845 Bearing 1 X X (A)
8 JD8576 Eccentric Locking Collar 1 X X
9 19M7790 Screw 1 X X M12 X 35
10 H172142 Strap 1 X X
H201852 Strap 1 X X (A)
11 H126302 Scraper 1 X X
12 H203474 V-Belt 1 X X LGTH = 3996 mm, WIDTH = 31.75 mm
H174885 V-Belt 1 X X (A) LGTH = 4062 mm, WIDTH = 47.752 mm
13 H126345 V-Belt 1 X X LGTH = 4650 mm, WIDTH = 31.75 mm
HXE95935 V-Belt 1 X X (A) LGTH = 4780 mm, WIDTH = 50 mm, SUB FOR H156541
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
14 19M7791 Bolt 3 X X (A) M12 X 40
15 14M7291 Flange Nut 3 X X (A) M16
16 AH204864 Pin 1 X X (A)
17 H135519 Washer 1 X X (A)

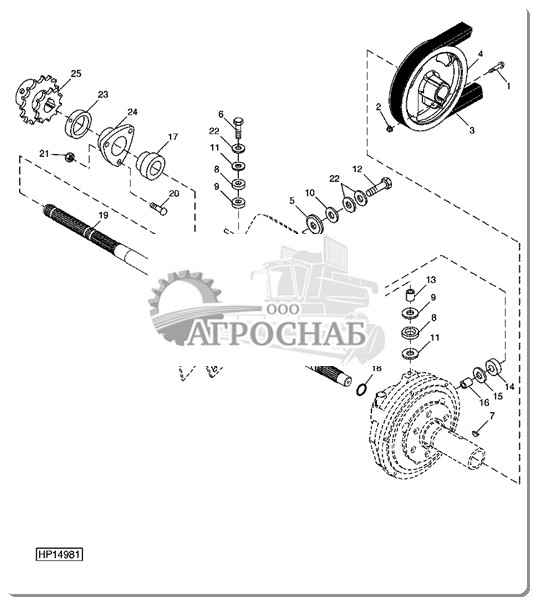

FRONT DRIVE SHAFT, SHEAVE AND MOUNTINGS (FIXED SPEED)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M8292 Screw 1 X X M10 X 50
2 14M7296 Flange Nut 1 X X M10
3 H203474 V-Belt 1 X X LGTH = 3996 mm , WIDTH = 31.75 mm
4 AH206934 Pulley 1 X X
5 T55761 Support 1 X X
6 19M7826 Screw 1 X X M16 X 70
7 26H104 Shaft Key 2 X X 5/16" X 2-1/8"
8 H148132 Cushion 2 X X
9 H148133 Retainer 2 X X
10 H163726 Washer 5 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 P50456 Washer 2 X X
12 19M7845 Screw 1 X X M16 X 90
13 Z64078 Spacer 1 X X
14 R62502 Support 1 X X
15 H97410 Washer 1 X X
16 H95417 Spacer 1 X X
17 JD9202 Ball Bearing 1 X X
18 H223849 Ring 1 X X (SUB FOR T61327)
19 H234410 Shaft 1 X X (SUB FOR H202940)
20 03M7193 Bolt 3 X X M10 X 35
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 14M7296 Flange Nut 3 X X M10
22 24M7241 Washer 3 X X 17 X 34 X 4 mm
23 JD9201 Eccentric Locking Collar 1 X X
24 H93927 Housing 1 X X
25 AH232851 Drive Sprocket 1 X X Z = 22/26, (SUB FOR AH203076)
AH232850 Drive Sprocket 1 X X (A) Z = 26/38, (SUB FO R AH206133 OR AH218403)
.. BH84459 Complete Goods/Ship. Bundle 1 X X (B)

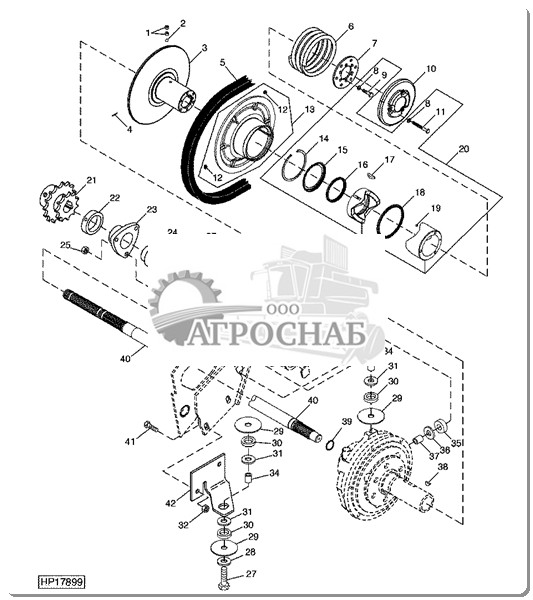

Front Drive Shaft, Sheave and Mountings, Variable Speed

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 22H775 Set Screw 2 X X 5/16" X 1/4"
2 H110922 Ball 1 X X
3 H216332 Half Sheave 1 X X Heavy Duty
H201579 Half Sheave 1 X X Standard
4 34M7255 Spring Pin 2 X X 6 X 50 mm
5 H218726 V-Belt 1 LGTH = 4068 mm , WIDTH = 46.2 mm, Feede rhouse Drive, Heavy Duty Variable Speed
HXE45928 V-Belt 1 LGTH = 4068 mm , WIDTH = 53.8 mm , SUB FOR H220911 Feederhouse D rive, High Torque Variable Speed
H201334 V-Belt 1 X X LGTH = 3893 mm , WIDTH = 38.1 mm, Feeder house Drive, Standard Duty Variable Speed
6 H172267 Compression Spring 1 X X
7 H170645 Washer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
8 12M7135 Lock Washer 1 X X 10 mm
9 19M7938 Cap Screw 6 X X M10 X 20
12M7135 Lock Washer 6 X X 10 mm
10 H155459 Retainer 1 X X
11 19M9042 Cap Screw 3 X X M10 X 80
12 JD7798 Lubrication Fitting 2 X X
13 AH204587 Half Sheave 1 X X Heavy Duty
AH201417 Pulley 1 X X Standard
14 H97308 Snap Ring 1 X X
15 H110728 Round Retainer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
16 AH108161 Seal 1 X X
17 26H104 Shaft Key 2 X X 5/16" X 2-1/8"
18 AH96345 Seal 1 X X
19 32243 Plug 1 X X
20 AH232575 Cam Kit 1 X X SUB FOR AH201888 OR (110) AH213114
21 AH232851 Drive Sprocket 1 X X Z = 22 / 26, SUB FOR AH203076
AH232850 Drive Sprocket 1 X X Z = 26 / 38, SUB FOR AH206 133 OR AH218403 High Speed
22 JD9201 Eccentric Locking Collar 1 X X
23 H93927 Housing 1 X X
24 JD9202 Ball Bearing 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
25 14M7296 Flange Nut 3 X X M10
26 03M7193 Bolt 3 X X M10 X 35
27 19M7826 Screw 2 X X M16 X 70
28 24M7241 Washer 4 X X 17 X 34 X 4 mm
29 H163726 Washer 5 X X
30 H148132 Cushion 4 X X
31 H148133 Retainer 4 X X
32 14M7299 Flange Nut 2 X X M12
33 19M7845 Screw 1 X X M16 X 90
34 Z64078 Spacer 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
35 R62502 Support 1 X X
36 H97410 Washer 1 X X
37 H95417 Spacer 1 X X
38 Z61818 Shaft Key 2 X X
39 H223849 Ring 1 X X SUB FOR T61327
40 H234410 Shaft 1 X X SUB FOR H202940
41 03M7198 Bolt 2 X X M12 X 30
42 H178565 Bracket 1 X X
43 T55761 Support 1 X X

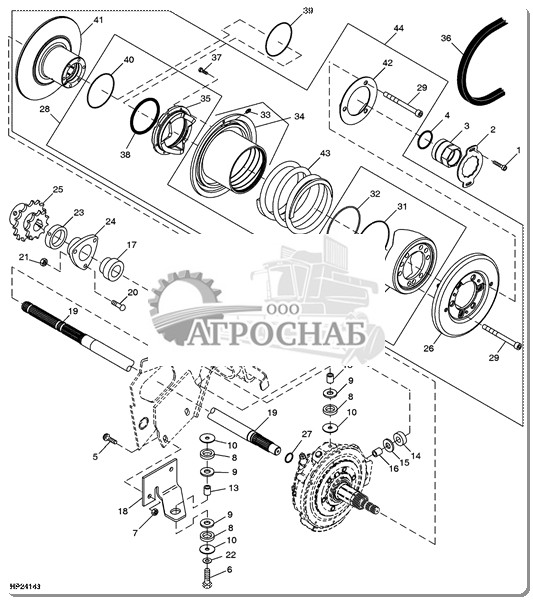

Front Drive Shaft, Sheave And Mountings (High Torque Variable Drive)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7864 Screw 2 X X M8 X 12
2 H220691 Lock Plate 1 X X
3 H220662 Nut 1 X X
4 H213749 Washer 1 X X
5 03M7198 Bolt 2 X X M12 X 30
6 19M7826 Screw 2 X X M16 X 70
7 14M7299 Flange Nut 2 X X M12
8 H148132 Cushion 4 X X
9 H148133 Retainer 4 X X
10 H163726 Washer 5 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 T55761 Support 1 X X
12 19M7845 Screw 1 X X M16 X 90
13 Z64078 Spacer 2 X X
14 R62502 Support 1 X X
15 H97410 Washer 1 X X
16 H95417 Spacer 1 X X
17 JD9202 Ball Bearing 1 X X
18 H178565 Bracket 1 X X
19 H234410 Shaft 1 X X (SUB FOR H202940)
20 03M7193 Bolt 3 X X M10 X 35
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 14M7296 Flange Nut 3 X X M10
22 24M7241 Washer 4 X X 17 X 34 X 4 mm
23 JD9201 Eccentric Locking Collar 1 X X
24 H93927 Housing 1 X X
25 AH232851 Drive Sprocket 1 X X SUB FOR AH203076; Z = 22 / 26
AH232850 Drive Sprocket 1 X X (A) SUB FOR AH206133 OR AH218403; Z = 26/38
26 AH219370 Plate 1 X X
27 H223849 Ring 1 X X (SUB FOR T61327)
28 AH220459 Sensor Kit 1 X X (B)
29 H219824 Screw 6 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
30 ...... Cam 1 X X
31 H214051 Snap Ring 1 X X
32 AH213408 Seal 1 X X
33 JD7759 Lubrication Fitting 2 X X
34 AH219367 Half Sheave 1 X X
35 ...... Cam 1 X X
36 HXE45928 V-Belt 1 X X LGTH = 4068 mm , WIDTH = 53.8 mm, SUB FOR H220911
37 19M7513 Cap Screw 8 X X M8 X 30
38 AH213156 Seal 1 X X
39 T41326 O-Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
40 H214052 Snap Ring 1 X X
41 H223211 Half Sheave 1 X X
42 AH219379 Plate 1 X X
43 H219776 Compression Spring 1 X X
44 AH219369 Pulley 1 X X
.. BH84459 Complete Goods/Ship. Bundle 1 X X (C)

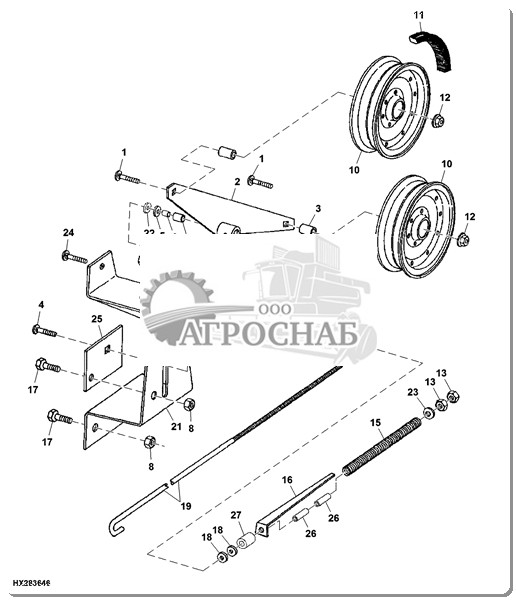

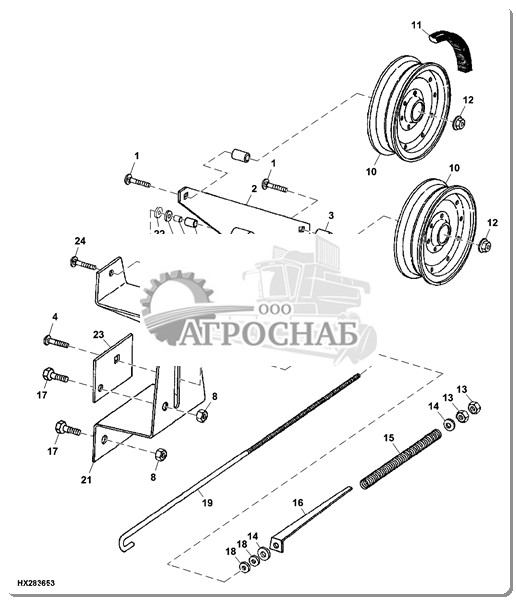

Fixed Speed Feeder House Drive Tightener ( - 710704)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 03M7211 Bolt 2 X X M16 X 70
03M7230 Bolt 1 X X (A) M16 X 90
2 AH227049 Arm 1 X X ORDER AXE34354
AXE34354 Arm 1
3 L1730N Bushing 2 X X
4 03M7248 Bolt 1 X X M12 X 90
5 24H1413 Washer 2 X X 57/64" X 1-3/8" X 0.048"
6 H89297 Bushing 1 X X
7 H132825 Pivot 1 X X
8 14M7299 Flange Nut AR X X M12
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 A31867 Lock Nut 1 X X
10 AH94450 Idler 2 X X
AH204389 Idler 2 X X (A)
11 H203474 V-Belt 1 X X LGTH = 3996 mm , WIDTH = 31.75 mm
H174885 V-Belt 1 X X (A) LGTH = 4062 mm , WIDTH = 47.752 mm
12 14M7291 Flange Nut 2 X X M16
13 14M7275 Nut 2 X X M12
14 24H1789 Washer AR X X 17/32" X 1-1/4" X 0.105"
15 A25695 Spring 1 X X
16 H95499 Gauge 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
17 19M7789 Screw AR X X M12 X 30
18 24M7240 Washer 2 X X 13 X 25 X 3 mm
19 H174886 Hook Bolt 1 X X
20 H98655 Bushing 2 X X
21 AH205618 Bracket 1 X X (SUB FOR AH147476)
22 H140469 Lock Washer 1 X X
23 H126370 Reinforcement 1 X X
24 03M7198 Bolt 1 X X M12 X 30

Fixed Speed Feeder House Drive Tightener (710705 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 03M7211 Bolt 2 X X M16 X 70
03M7230 Bolt 2 X X (A) M16 X 90
2 AH227049 Arm 1 X X ORDER AXE34354
AXE34354 Arm 1
3 L1730N Bushing 2 X X
4 03M7248 Bolt 1 X X M12 X 90
5 24H1413 Washer 2 X X 57/64" X 1-3/8" X 0.048"
6 H89297 Bushing 1 X X
7 H132825 Pivot 1 X X
8 14M7299 Flange Nut AR X X M12
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 A31867 Lock Nut 1 X X
10 AH94450 Idler 2 X X
AH204389 Idler 2 X X (A)
11 H203474 V-Belt 1 X X LGTH = 3996 mm , WIDTH = 31.75 mm
H174885 V-Belt 1 X X (A) LGTH = 4062 mm , WIDTH = 47.752 mm
12 14M7291 Flange Nut 2 X X M16
13 14M7275 Nut 2 X X M12
14 24H1789 Washer 1 X X 17/32" X 1-1/4" X 0.105"
15 N203041 Compression Spring 1 X X
16 HXE111234 Gauge 1 X X SUB FOR H216397
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
17 19M7789 Screw AR X X M12 X 30
18 24M7240 Washer 2 X X 13 X 25 X 3 mm
19 H174886 Hook Bolt 1 X X
20 H98655 Bushing 2 X X
21 AH205618 Bracket 1 X X (SUB FOR AH147476)
22 H140469 Lock Washer 1 X X
23 24M7102 Washer 1 X X 13.500 X 44 X 4 mm
24 03M7198 Bolt 1 X X M12 X 30
25 H126370 Reinforcement 1 X X
26 ...... Hose 2 X X 70 MM, (CUT FROM TY22326)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
27 H141448 Bushing 1 X X

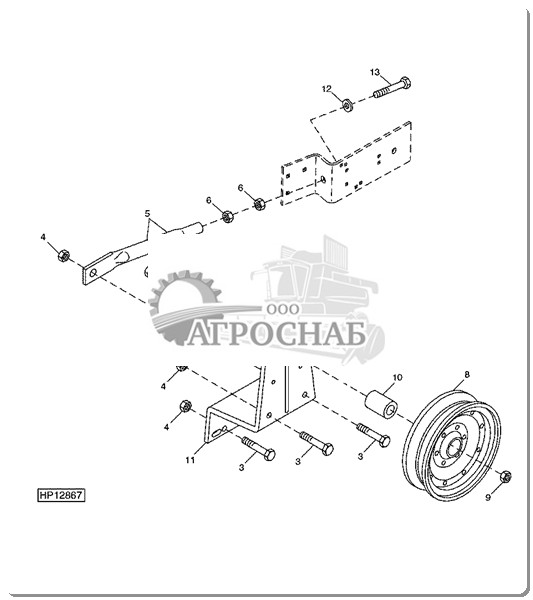

Variable Speed Feeder House Drive Tightener

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7828 Screw 1 X X M16 X 100
2 03M7198 Bolt 1 X X M12 X 30
3 19M7789 Screw 4 X X M12 X 30
4 14M7299 Flange Nut 5 X X M12
5 H208617 Brace 1 X X
6 14M7277 Nut 2 X X M20
7 24H1698 Washer 1 X X 21/32" X 1-5/8" X 1/4"
8 AH204389 Idler 1 X X
9 14M7291 Flange Nut 1 X X M16
10 H156850 Spacer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH205618 Bracket 1 X X (SUB FOR AH147476)
12 24M7051 Washer 1 X X 21 X 37 X 3 mm
13 19M8221 Cap Screw 1 X X M20 X 180

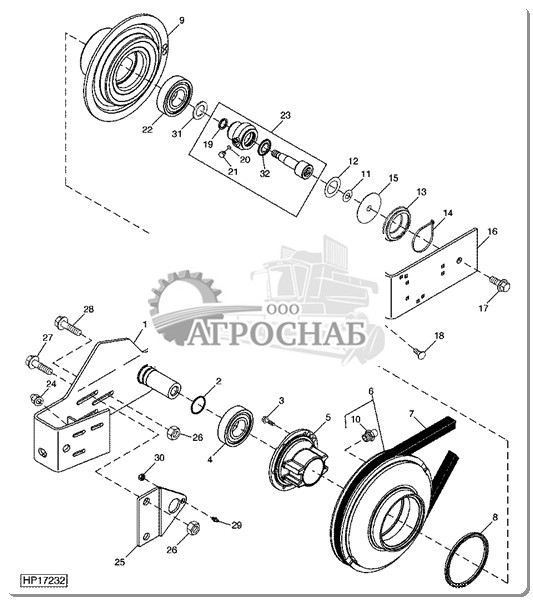

Variable Drive Upper Countershaft, Sheaves and Supports ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH167579 Bracket 1 X X
2 R31378 O-Ring 1 X X
3 19M7867 Screw 6 X X M8 X 25
4 JD10018 Ball Bearing 1 X X
5 H97378 Hub 1 X X
6 AH201231 Half Sheave 1 X (A)
AH204591 Half Sheave 1 X X (B)
7 H156796 V-Belt 1 X (C)
HXE95935 V-Belt 1 X X (D) LGTH = 4780 mm, WIDTH = 50 mm, SUB FOR H156541
8 AH136497 Seal 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 H171453 Pulley 1 X (A)
H204872 Half Sheave 1 X X (B)
10 JD7759 Lubrication Fitting 2 X X
11 24H1740 Washer AR X X 21/32" X 1-3/8" X 0.032"
12 H171448 Washer AR X X
13 H203610 Boot 1 X X
14 H77698 Tie Band 1 X X
15 H161388 Washer 1 X X
16 AH208564 Strap 1 X X
17 19M7793 Screw 1 X X M16 X 40
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18 03M7192 Bolt 3 X X M10 X 30
19 AH209763 Seal 1 X X
20 R28782 O-Ring 1 X X
21 R51031 Fitting 1 X X
22 AH165609 Ball Bearing 1 X X
23 AH213758 Hydraulic Cylinder 1 X X
24 14M7296 Flange Nut 3 X X M10
25 H167257 Bracket 1 X X
26 14M7299 Flange Nut 5 X X M12
27 19M7814 Screw 2 X X M12 X 50
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
28 19M7789 Screw 1 X X M12 X 30
29 H168732 Ball Stud 1 X X
30 14M7397 Lock Nut 1 X X M6
31 24H1452 Washer 1 X (A) 1-1/32" X 1-3/4" X 0.105"
32 AH209762 Seal 1 X X

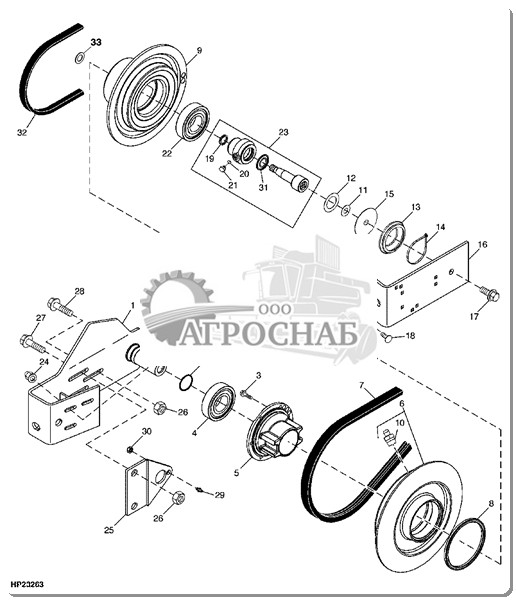

Variable Drive Upper Countershaft, Sheaves and Supports (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH167579 Bracket 1 X X
2 R31378 O-Ring 1 X X
3 19M7867 Screw 6 X X M8 X 25
4 JD10018 Ball Bearing 1 X X
5 H97378 Hub 1 X X
6 AH204591 Half Sheave 1 X X (B) (C)
7 HXE95935 V-Belt 1 X (A) LGTH = 4780 mm, WIDTH = 50 mm, SUB FOR H156541
8 AH136497 Seal 1 X X
9 H204872 Half Sheave 1 X (B)
H217454 Half Sheave 1 X X (C)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 JD7759 Lubrication Fitting 2 X X
11 24H1740 Washer AR X X 21/32" X 1-3/8" X 0.032"
12 H171448 Washer AR X X
13 H203610 Boot 1 X X
14 H77698 Tie Band 1 X X
15 H161388 Washer 1 X X
16 AH208564 Strap 1 X X
17 19M7793 Screw 1 X X M16 X 40
18 03M7192 Bolt 3 X X M10 X 30
19 AH209763 Seal 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
20 R28782 O-Ring 1 X X
21 R51031 Fitting 1 X X
22 AH165609 Ball Bearing 1 X X
23 AH213758 Hydraulic Cylinder 1 X X
24 14M7296 Flange Nut 3 X X M10
25 H167257 Bracket 1 X X
26 14M7299 Flange Nut 5 X X M12
27 19M7814 Screw 2 X X M12 X 50
28 19M7789 Screw 1 X X M12 X 30
29 H168732 Ball Stud 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
30 14M7397 Lock Nut 1 X X M6
31 AH209762 Seal 1 X X
32 HXE45928 V-Belt 1 X X LGTH = 4068 mm, WIDTH = 5 3.8 mm, SUB FOR H220911
33 24H1452 Washer 1 X X 1-1/32" X 1-3/4" X 0.105"

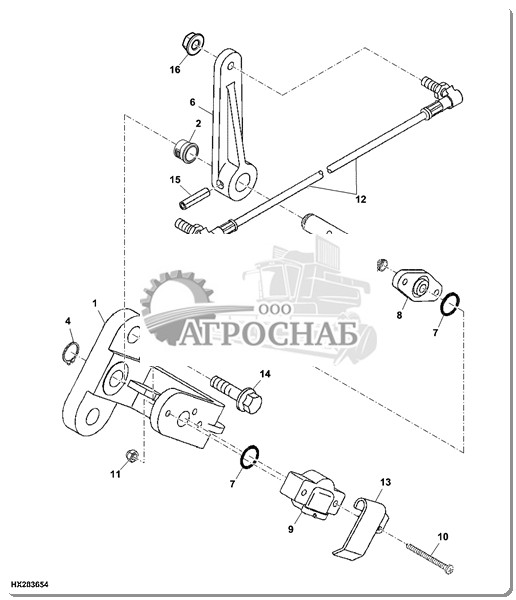

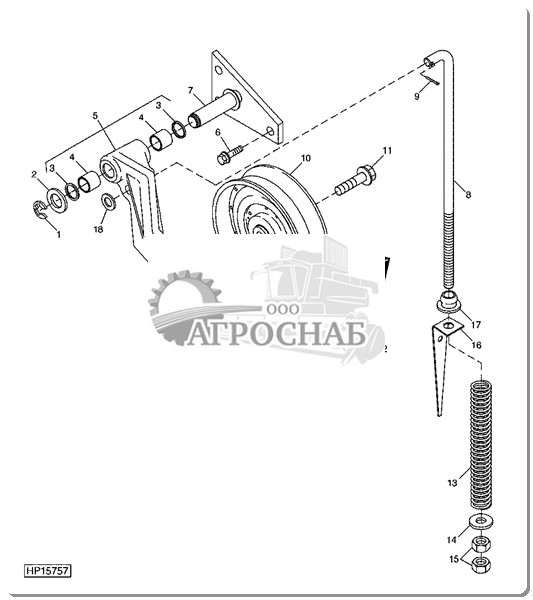

Feeder House Drive Tightener

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 P46402 Snap Ring 1 X X
2 24M7091 Washer 1 X X 26 X 44 X 4 mm
3 AA5607R Seal 2 X X
4 H171061 Bushing 2 X X
5 AH168397 Arm 1 X X
6 19M7784 Screw 3 X X M10 X 20
7 AH210916 Pin 1 X X (SUB FOR AH201407)
8 H160734 Hook Bolt 1 X X
9 11M7028 Cotter Pin 1 X X 5 X 32 mm
10 AH166439 Idler 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 19M7824 Screw 1 X X M16 X 60
12 H156796 V-Belt 1 X X (A)
HXE95935 V-Belt 1 X X (B) LGTH = 4780 mm, WIDTH = 50 mm, SUB FOR H156541
13 N61654 Compression Spring 1 X X
14 24H1373 Washer 1 X X 21/32" X 1-9/16" X 0.180"
15 14M7276 Nut 2 X X M16
16 H225585 Gauge 1 X X (SUB FOR H116862, THIS APPLICATION)
17 H129208 Pivot 1 X X
18 24M7053 Washer 1 X X 17 X 30 X 3 mm
19 24H1371 Washer 1 X X 21/32" X 1-3/8" X 0.194"

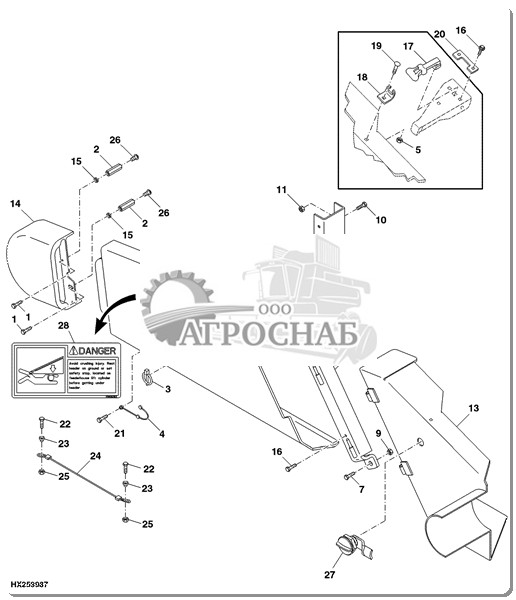

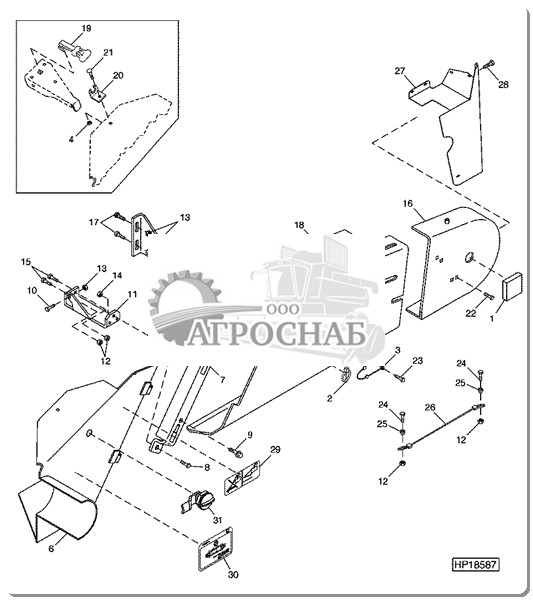

LH Drive Shields

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H119187 Pad 1 X X
2 M72598 Quick Lock Pin 1 X X
3 H167815 Strap 1 X X
4 14M7303 Flange Nut AR X X M6
5 AH160799 Support 1 X X
6 AH206297 Shield 1 X X (A)
AH214826 Shield 1 X X (B)
7 AH160798 Support 1 X X
8 19M7788 Screw 2 X X M12 X 25
9 37M7089 Screw 1 X X M6 X 12
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 19M7784 Screw 1 X X M10 X 20
11 H205824 Bracket 1 X X
12 14M7298 Flange Nut AR X X M8
13 14M7296 Flange Nut AR X X M10
14 14M7299 Flange Nut 2 X X M12
15 03M7183 Bolt 2 X X M8 X 16
16 AH205743 Shield 1 X X
17 03M7190 Bolt 2 X X M10 X 20
18 H205822 Shield 1 X X
19 A44990 Latch 1 X X (C)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
20 H141549 Angle 1 X X (C)
21 03M7251 Bolt 1 X X M6 X 12
22 19M7866 Screw 1 X X M8 X 20
23 21M7246 Screw 1 X X M6 X 16
24 21M7125 Screw 2 X X M8 X 25
25 M93425 Spacer 2 X X
26 AH134121 Cable 1 X X
27 AH211802 Shield 1 - 705927
AH211802 Shield 1 - 705753
AH211432 Shield 1 705928 -
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH211432 Shield 1 705754 -
28 37M7058 Screw AR X X M8 X 20
29 H207702 Label 1 X X
30 H150434 Label 1 X X
31 AH230731 Latch 1 X X (D)

RH Drive Shields

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7785 Screw 2 X X M10 X 25
2 H143489 Bushing 2 X X
3 M72598 Quick Lock Pin 1 X X
4 H167815 Strap 1 X X
5 14M7303 Flange Nut AR X X M6
6 H206543 Shield 1 X X (INCL C)
7 19M7788 Screw 2 X X M12 X 25
8 AH160798 Support 1 X X
9 14M7299 Flange Nut 2 X X M12
10 03M7190 Bolt 2 X X M10 X 20
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 14M7296 Flange Nut 2 X X M10
12 AH206523 Bracket 1 X X
13 AH167067 Shield 1 X X
14 H146766 Powershaft Shield 1 X X
15 24H1311 Washer 2 X X 13/32" X 1-1/4" X 0.220"
16 37M7089 Screw AR X X M6 X 12
17 A44990 Latch 1 X X (A)
18 H141549 Angle 1 X X (A)
19 03M7251 Bolt 1 X X M6 X 12
20 H174959 Retainer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 21M7246 Screw 1 X X M6 X 16
22 21M7125 Screw 2 X X M8 X 25
23 M93425 Spacer 2 X X
24 AH134121 Cable 1 X X
25 14M7298 Flange Nut 4 X X M8
26 21M7442 Screw 2 X X M10 X 20
27 AH230731 Latch 1 X X (B)
28 H149063 Label 1 X X (C)

Feeder House Frame ( - 720300)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H201339 Support 2 X X
2 19M7789 Screw 8 X X M12 X 30
3 R28783 Compression Spring 2 X X
4 H152062 Door 2 X X
5 H133989 Hinge 2 X X
6 14M7298 Flange Nut AR X X M8
7 H76083 Pin 2 X X 175 MM
8 03M7183 Bolt AR X X M8 X 16
9 AH223276 Frame 1 X X SUB FOR AH205345 OR AH2174 59; INCLUDES (2) HXE123792
10 H176849 Mat 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH160360 Channel 1 X X
12 14M7401 Lock Nut AR X X M12
13 24M7180 Washer AR X X 13 X 37 X 3 mm
14 H220556 Isolator 1 X X (SUB FOR H158609 OR H210627)
15 H210628 Reinforcement 2 X X (SUB FOR H162025)
16 AH155394 Door 1 X X
17 H205780 Cover 1 X X
18 19M7866 Screw 12 X X M8 X 20 SUB FOR 19M7868
19 H136015 Mat 1 X X
20 H131743 Mat 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 45M7058 Pin Fastener 4 X X 16 X 60 mm
22 HXE123792 Label 2 X X
23 H206503 Shield 1 X X
24 H172174 Eyebolt 2 X X
25 A15147 Spring Locking Pin 4 X X
26 H172173 Turnbuckle 2 X X
27 14M7260 Nut 2 X X M16
28 H172175 Eyebolt 2 X X
29 19M7793 Screw 2 X X M16 X 40
30 H177363 Bushing 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 H214781 Plate 1 X X (SUB FOR H174815)
32 H216477 Angle 1 X X (SUB FOR H211004)
33 19M7788 Screw 8 X X M12 X 25
34 H171372 Plate 1 X X
35 H172172 Seal 2 X X
36 37M7096 Screw 2 X X M8 X 35
37 19M7182 Cap Screw 2 X X M12 X 50
38 H217779 Stop 2 X X (SUB FOR H171858)
39 H213285 Plate 2 X X (SUB FOR H171857)
40 14M7299 Flange Nut AR X X M12
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
41 H174818 Ring 2 X X
42 H174817 Pin 2 X X
43 H226362 Handle 2 X X (SUB FOR AH217527)
44 W25634 Grip 2 X X
45 03M7197 Bolt 2 X X M12 X 25
46 03M7199 Bolt 2 X X M12 X 35
47 H97322 Cam 2 X X
48 H218345 Strap 2 X X
49 24M7103 Washer 2 X X 17.500 X 56 X 5 mm
50 H203902 Mat 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
51 37M7092 Screw 1 X X M8 X 16

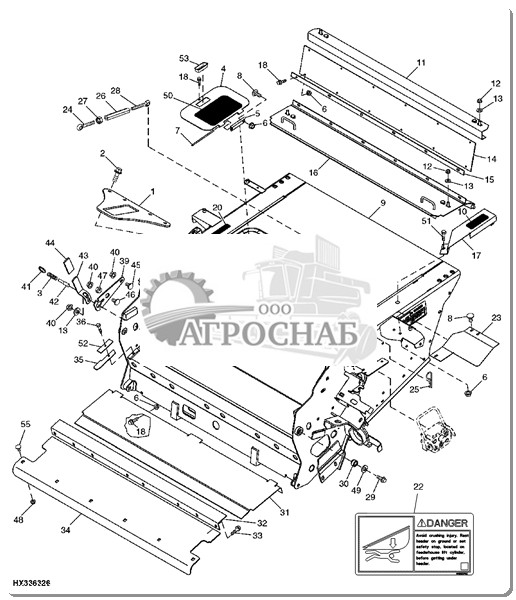

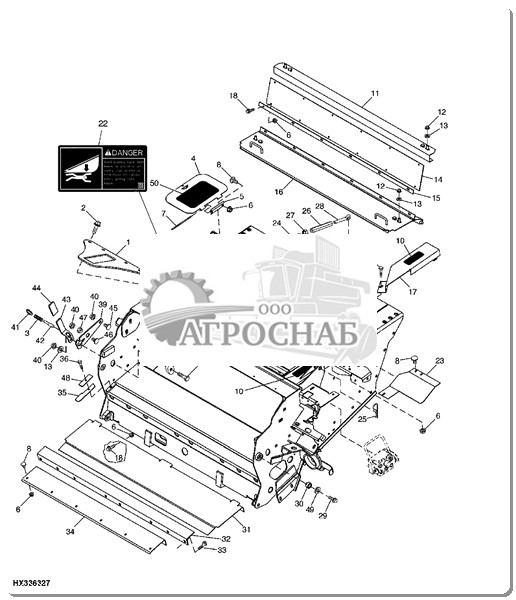

Feeder House Frame (720301 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H201339 Support 2 X X
2 19M7789 Screw 8 X X M12 X 30
3 R28783 Compression Spring 2 X X
4 H222501 Door 2 X X
5 H133989 Hinge 2 X X
6 14M7298 Flange Nut AR X X M8
7 H76083 Pin 2 X X 175 MM
8 03M7183 Bolt AR X X M8 X 16
9 AH223276 Frame 1 X X SUB FOR AH217459; INCLUDES (2) HXE123792
10 H176849 Mat 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH160360 Channel 1 X X
12 14M7401 Lock Nut AR X X M12
13 24M7180 Washer AR X X 13 X 37 X 3 mm
14 H220556 Isolator 1 X X
15 H162025 Reinforcement 2 X X
H210628 Reinforcement 2 X X
16 AH155394 Door 1 X X
17 H205780 Cover 1 X X
18 19M7866 Screw AR X X M8 X 20
19 H136015 Mat 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
20 H131743 Mat 1 X X
21 45M7058 Pin Fastener 4 X X 16 X 60 mm
22 HXE123792 Label 2 X X
23 H206503 Shield 1 X X
24 H172174 Eyebolt 2 X X
25 A15147 Spring Locking Pin 4 X X
26 H172173 Turnbuckle 2 X X
27 14M7260 Nut 2 X X M16
28 H172175 Eyebolt 2 X X
29 19M7793 Screw 2 X X M16 X 40
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
30 H177363 Bushing 2 X X
31 H219180 Plate 1 X X
32 H216477 Angle 1 X X
33 19M7788 Screw 8 X X M12 X 25
34 H219091 Plate 1 X X (A)
H214837 Plate 1 X X (B)
35 H172172 Seal 2 X X
36 37M7096 Screw 2 X X M8 X 35
37 19M7182 Cap Screw 2 X X M12 X 50
38 H217779 Stop 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
39 H213285 Plate 2 X X
40 14M7299 Flange Nut AR X X M12
41 H174818 Ring 2 X X
42 H174817 Pin 2 X X
43 H226362 Handle 2 X X (SUB FOR AH217527)
44 W25634 Grip 2 X X
45 03M7197 Bolt 2 X X M12 X 25
46 03M7199 Bolt 2 X X M12 X 35
47 H97322 Cam 2 X X
48 14M7296 Flange Nut 6 X X M10
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
49 24M7103 Washer 2 X X 17.500 X 56 X 5 mm
50 H203902 Mat 2 X X
51 37M7092 Screw 1 X X M8 X 16
52 H218345 Strap 2 X X
53 H222502 Handle 2 X X
54 H156360 Nut 2 X X
55 H223214 Bolt 6 X X

Reel Lift / Lower Orifice Kit

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 BXE10142 Reel Kit 1

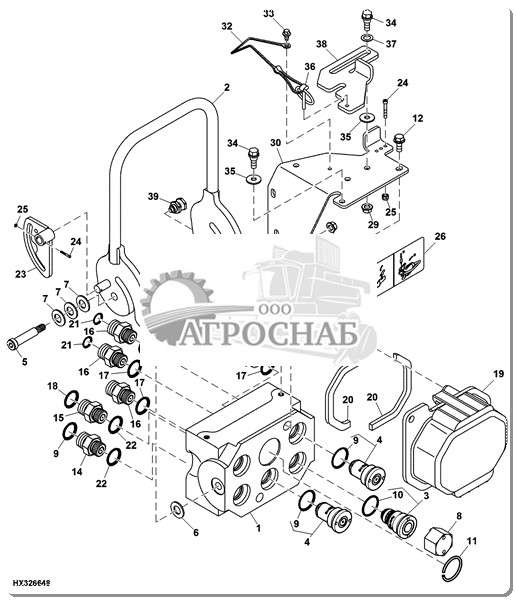

Multicoupler

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H221683 Valve 1 X X SUB FOR H201426
2 AH226463 Lever 1 X X SUB FOR AH208092 OR AH216320
3 AXE60983 Hydr. Quick Coupler Socket 3 X X SUB FOR AXE49949 OR AH225671
AXE67698 Seal Kit 3 X X
4 AXE60984 Hydr. Quick Coupler Socket 2 X X SUB FOR AXE21789 OR AH201333 OR AH225670
5 H202073 Bolt 2 X X
6 H202861 Washer 2 X X
7 H202862 O-Ring 6 X X
8 AH201808 Special Service Tool 1 X X
9 T76938 O-Ring 5 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 T77858 O-Ring 3 X X
11 H175881 Snap Ring 1 X X
12 19M7865 Screw AR X X M8 X 16
13 AH121643 Orifice 1 X X
14 38H1162 Adapter Fitting 1 X X
15 38H1174 Adapter Fitting 1 X X
16 AH208827 Orifice 3 X X
38H1160 Orifice 1 (C)
17 R26375 O-Ring 5 X X
R26448 O-Ring 1 (C)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18 T77857 O-Ring 1 X X
19 H201368 Cover 1 X X
20 H202240 Seal 2 X X
21 T77613 O-Ring AR X X
22 R26906 O-Ring 2 X X
23 AH208638 Plate 1 X X
24 19M9326 Screw AR X X
25 14M7264 Lock Nut AR X X M4
26 H207702 Label 1 X X (A)
H216524 Label 1 X X (B)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
27 38H1147 Fitting Plug 1 X X
28 19M7866 Screw 3 X X M8 X 20
29 14M7298 Flange Nut 5 X X M8
30 H221317 Support 1 X X (SUB FOR H208701 OR H218363)
31 38H1094 Elbow Fitting 1 X X
32 H167815 Strap 1 X X
33 37M7089 Screw 1 X X M6 X 12
34 H169568 Screw 3 X X
35 24M7207 Washer 3 X X 8.400 X 24 X 2 mm
36 M72598 Quick Lock Pin 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
37 24H1320 Washer 2 X X 29/64" X 3/4" X 0.035"
38 H216518 Plate 1 X X
39 AH216321 Spring Locking Pin 1 X X

Feeder House Fore/Aft Pivot Frame (Level Land) ( - 720300)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H219490 Reinforcement 2 X X (SUB FOR H171364)
2 37M7092 Screw 14 X X M8 X 16
3 H219544 Isolator 1 X X (SUB FOR H172198)
4 03M7388 Bolt 6 X X M16 X 70
5 24M7103 Washer 6 X X 17.500 X 56 X 5 mm
6 14M7291 Flange Nut 6 X X M16
7 21M7442 Screw 2 X X M10 X 20
8 H177615 Plate 2 X X
9 19M7789 Screw 8 X X M12 X 30
10 14M7296 Flange Nut AR X X M10
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH203948 Deflector 1 X X
12 AH203949 Deflector 1 X X
13 H204516 Shield 1 X X
14 H173157 Plate 4 X X
15 19M8549 Screw 4 X X M16 X 40
16 AH205984 Frame 1 X X
17 H206330 Angle 2 X X
18 03M7191 Bolt 2 X X M10 X 25
19 19M7784 Screw 7 X X M10 X 20
20 H143407 Wear Plate 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 03M7192 Bolt 2 X X M10 X 30
22 H217347 Snap Ring AR X X

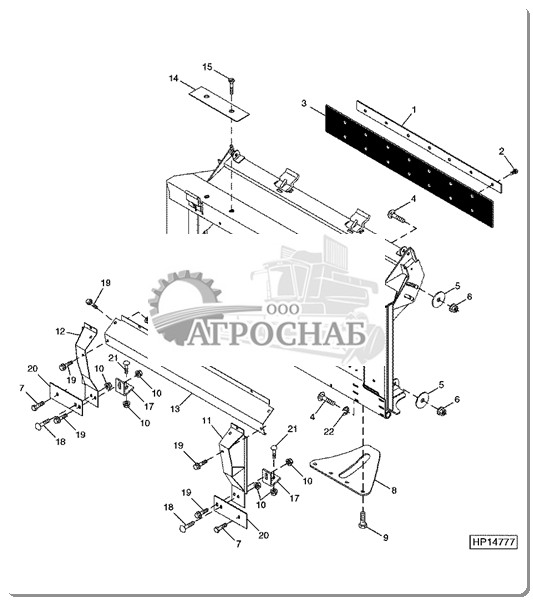

Feeder House Fore/Aft Pivot Frame (Level Land) (720301 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H220560 Reinforcement 2 X X (SUB FOR H202962)
2 37M7092 Screw 14 X X M8 X 16
3 H220555 Isolator 1 X X (SUB FOR H203122)
4 03M7388 Bolt 6 X X M16 X 70
5 24M7103 Washer 6 X X 17.500 X 56 X 5 mm
6 14M7291 Flange Nut 6 X X M16
7 HXE13354 Deflector 1 X X (SUB FOR H220902 OR H232818)
8 H177615 Plate 2 X X
9 19M7789 Screw 8 X X M12 X 30
10 H221029 Strap 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H217347 Snap Ring AR X X
12 H220903 Deflector 1 X X
13 19M7785 Screw AR X X M10 X 25
14 H173157 Plate 4 X X
15 19M8549 Screw 4 X X M16 X 40
16 AH231418 Frame 1 X X (SUB FOR AH211984 ) (ALSO ORDER (2) H235756, (2) H237013, (2) E 61191, (2) R226347, (2) 24M7241)
17 24M7178 Washer AR X X 10.500 X 30 X 2.500 mm
18 21M7442 Screw AR X X M10 X 20
19 H220904 Deflector 1 X X
20 H238359 Plate 1 X X 2MM

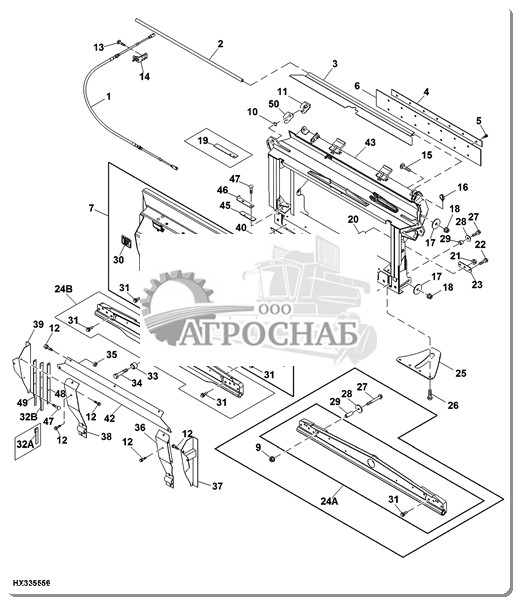

Feeder House Fore / Aft Pivot Frame (Contour Master) ( - 720300)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH162586 Cable 1 X X
2 H144825 Pipe 1 X X
3 H172200 Seal 1 X X
4 H219490 Reinforcement 2 X X (SUB FOR H171364)
5 37M7092 Screw 14 X X M8 X 16
6 H219544 Isolator 1 X X (SUB FOR H172198)
7 AH214678 Frame 1 X X (SUB FOR AH168659)
8 H149459 Wear Plate 1 X X LH
H149460 Wear Plate 1 X X RH
9 14M7299 Flange Nut 2 X X M12 (USE WITH AH207294)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 R495R O-Ring 2 X X
11 H149461 Wear Plate 2 X X
12 19M7784 Screw AR X X M10 X 20
13 37M7089 Screw AR X X M6 X 12
14 AH162585 Bracket 1 X X
15 03M7388 Bolt 6 X X M16 X 70
16 M72598 Quick Lock Pin 2 X X
17 24M7103 Washer 6 X X 17.500 X 56 X 5 mm
18 14M7291 Flange Nut 6 X X M16
19 H206609 Strap 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
20 H149517 Bushing 1 X X
21 14M7300 Flange Nut 1 X X M20
22 19M7788 Screw 2 X X M12 X 25
23 H149518 Strap 1 X X
24A AH207294 Frame 1 X X (SUB AH220095)
24B AH234106 Frame 1 X X (SUB FOR AH220095 OR AH231550) (SUB FOR AH220095 OR AH231550) ALSO ORDER AH220955
25 H177615 Plate 2 X X
26 19M7789 Screw 8 X X M12 X 30
27 19M7820 Screw 2 X X M12 X 100 (USE WITH AH207294)
19M7815 Screw 2 X X M12 X 60 (USE WITH AH220095 OR AH234106)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
28 E81185 Washer 2 X X
29 28H3395 Bushing 2 X X 0.546" X 0.840" X 1-1/4"
30 H151607 Sign 4 X X
31 19M7844 Screw 8 X X M16 X 45
32A H205353 Isolator 2 - 706172
H205353 Isolator 2 - 705850
32B H213074 Isolator 2 706173 -
H213074 Isolator 2 705851 -
33 H142870 Bushing 1 X X
34 19M7921 Cap Screw 1 X X M20 X 150
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
35 H135891 Lock Nut AR X X
36 AH222556 Shield 1 X X LH, (SUB FOR AH204008 AND AH219304)
37 AH204022 Support 1 X X LH
38 AH222557 Shield 1 X X RH, (SUB FOR AH204009 AND AH219305)
39 AH204023 Support 1 X X RH
40 M64720 Rivet 12 X X
41 H162410 Strip 2 X X
42 H178139 Panel 1 X X
43 AH205161 Frame 1 X X
44 H217347 Snap Ring AR X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
45 H206609 Strap 2 X X
46 H218446 Angle 1 X X RH
H218447 Angle 1 X X LH
47 37M7090 Screw AR X X M6 X 16
48 H218448 Plate 2 X X
49 H218449 Plate 2 X X
50 HXE104720 Plate AR X X

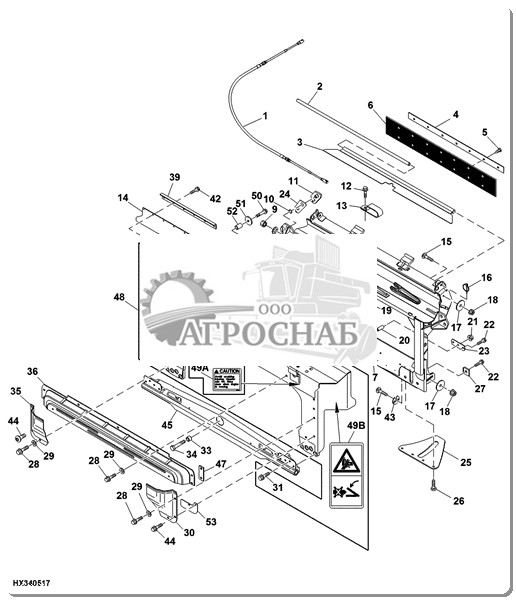

Feeder House Fore / Aft Pivot Frame, Contour-Mastera?? (720301 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH162586 Cable 1 X X
2 H144825 Pipe 1 X X
3 H172200 Seal 1 X X
4 H219490 Reinforcement 2 X X
5 37M7049 Screw AR X X
6 H219544 Isolator 1 X X
7 AH233849 Frame 1 X X (SUB FOR AH223029 OR AH234079 ) ( SUB AH233025 ) (ALSO ORDER (2) H23 7038, (2) H235756, (2) H237013, (2 ) E61191, (2) R226347, (2) 24M7241 )
AH233025 Frame 1 X X ALSO ORDER (2) H237038, (2) H240368, (2) H240377, (2) E61191, (2) R226347, (2) 24M7241, (2) HXE16671, (2) HXE1667 2
8 H149459 Wear Plate 1 X X LH
H149460 Wear Plate 1 X X RH
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 14M7299 Flange Nut 4 X X M12
10 R495R O-Ring 2 X X
11 H149461 Wear Plate 2 X X
12 37M7084 Screw AR X X M8 X 25
13 AH97280 Clip 1 X X
14 H222261 Seal 1 X X
15 03M7388 Bolt 6 X X M16 X 70
16 M72598 Quick Lock Pin 2 X X
17 24M7103 Washer 6 X X 17.500 X 56 X 5 mm
18 14M7291 Flange Nut 8 X X M16
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 19M7790 Screw 4 X X M12 X 35
20 H149517 Bushing 1 X X
21 14M7300 Flange Nut 1 X X M20
22 19M7788 Screw AR X X M12 X 25
23 H149518 Strap 1 X X
24 HXE104720 Plate AR X X
25 H177615 Plate 2 X X
26 19M7789 Screw 8 X X M12 X 30
27 H227029 Strip 2 X X SUB FOR (2) H219089
28 19M7785 Screw AR X X M10 X 25
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
29 24M7178 Washer AR X X 10.500 X 30 X 2.500 mm
30 H220903 Deflector 1 X X
31 19M7844 Screw 4 X X M16 X 45
32 H222388 Angle 1 X X LH
H222348 Angle 1 X X RH
33 H142870 Bushing 1 X X
34 19M7921 Cap Screw 1 X X M20 X 150
35 H220904 Deflector 1 X X
36 HXE13354 Deflector 1 SUB FOR H220902 OR H232818
37 H220898 Weatherstrip 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
38 H220899 Plate 2 X X
39 H222279 Reinforcement 1 X X
40 37M7131 Screw 2 X X M6 X 20
41 H222347 Seal 2 X X
42 37M7090 Screw AR X X M6 X 16
43 H217347 Snap Ring AR X X
44 21M7442 Screw AR X X M10 X 20
45 AH234106 Frame 1 X X SUB FOR AH220095 OR AH231550
46 ...... Frame 1 X X
47 H221029 Strap 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
48 AH227807 Frame 1 X X (SUB FOR AH208565 OR AH223030 ) (INCLUD ES (2) H151607, (2) H220898, (2) H220899 , (8) 37M7090, (8) 14M7291 AND 19M7844)
49A H151607 Sign 2 X X
49B H154128 Label 2 X X
50 19M7815 Screw 2 X X M12 X 60
51 E81185 Washer 2 X X
52 28H3395 Bushing 2 X X 0.546" X 0.840" X 1-1/4"
53 H238359 Plate 1 X X 2MM

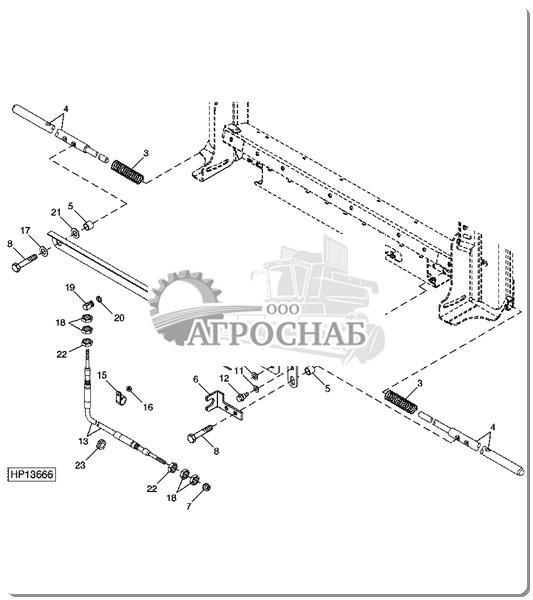

HEADER LATCHING MECHANISM (LEVEL LAND)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H209379 Grommet 3 X X
2 AH206710 Latch 1 X X
3 124424 Compression Spring 2 X X
4 H206333 Pin Fastener 2 X X
5 28H102 Spacer 3 X X 0.364" X 0.540" X 1"
6 H210872 Angle 1 X X
7 14M7296 Flange Nut 1 X X M10
8 19M7269 Cap Screw 3 X X M8 X 50
9 11M7059 Cotter Pin 1 X X 3.200 X 20 mm
10 24M7178 Washer 1 X X 10.500 X 30 X 2.500 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 24M7047 Washer 1 X X 13 X 24 X 2.500 mm
12 H169568 Screw 1 X X
13 AH207405 Push Pull Cable 1 X X (INCL A)
14 H206322 Angle 1 X X
15 AH78125 Clip 1 X X
16 14M7298 Flange Nut 1 X X M8
17 24M7207 Washer 1 X X 8.400 X 24 X 2 mm
18 14M7335 Nut 4 X X M20 (A)
19 H208005 Pivot 1 X X (A)
20 R38371 Washer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 24H1351 Washer 1 X X 9/16" X 1-1/2" X 0.164"
22 14M7152 Nut 2 X X M10 (A)
23 MT1073 Grommet 1 X X

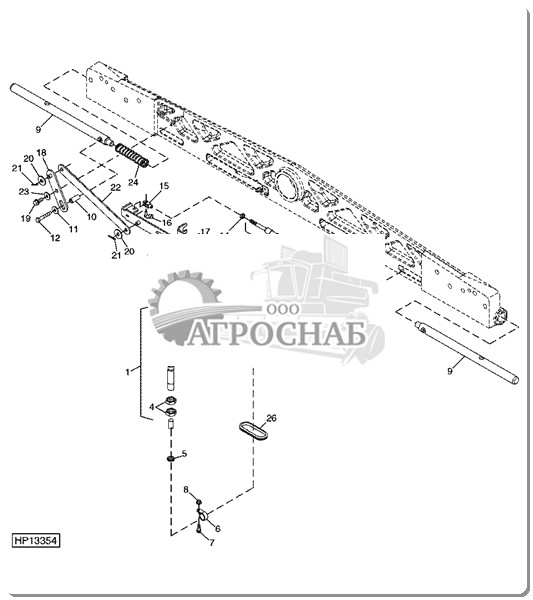

Header Latching Mechanism (Contour Master) ( - 715410)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH206058 Push Pull Cable 1 X X (INCL A)
2 H208005 Pivot 1 X X (A)
3 14M7152 Nut 1 X X M10 (A)
4 14M7335 Nut 2 X X M20 (A)
5 MT1073 Grommet 1 X X
6 AH78125 Clip 2 X X
7 19M7866 Screw 2 X X M8 X 20
8 14M7298 Flange Nut 4 X X M8
9 H206002 Pin Fastener 2 X X
10 28H1941 Bushing 2 X X 0.364" X 0.540" X 1-1/4"
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 24M7207 Washer 2 X X 8.400 X 24 X 2 mm
12 19M7269 Cap Screw 2 X X M8 X 50
13 AH209275 Linkage 1 X X
14 14M7151 Nut 1 X X M8 (A)
15 54M4419 Yoke 1 X X
16 45M7105 Spring Locking Pin 1 X X
17 H206696 Angle 1 X X
18 AH206710 Latch 1 X X
19 H169568 Screw 2 X X
20 24M7178 Washer 2 X X 10.500 X 30 X 2.500 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 11M7059 Cotter Pin 2 X X 3.200 X 20 mm
22 H206688 Strap 1 X X
23 24M7047 Washer 1 X X 13 X 24 X 2.500 mm
24 H206740 Compression Spring 1 X X
25 R38371 Washer 1 X X
26 H209379 Grommet 1 X X

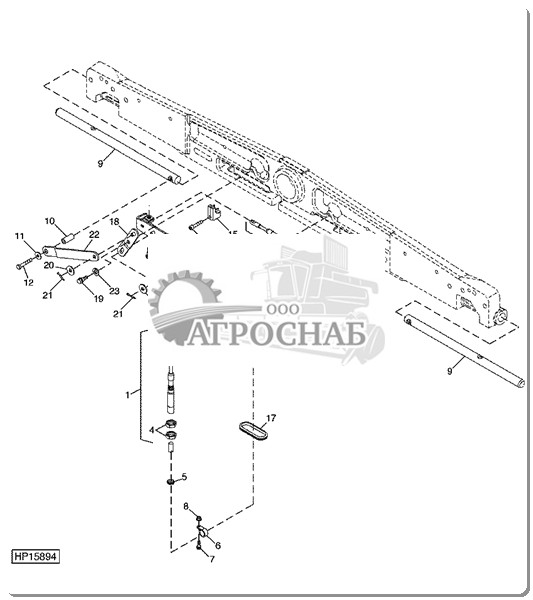

Header Latching Mechanism (Contour Master) (715411 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH212083 Push Pull Cable 1 X X
2 H208005 Pivot 1 X X
3 14M7152 Nut 1 X X M10
4 14M7335 Nut 2 X X M20
5 MT1073 Grommet 1 X X
6 AH78125 Clip 2 X X
7 19M7866 Screw 2 X X M8 X 20
8 14M7298 Flange Nut 2 X X M8
9 H235687 Pin Fastener 2 X X (SUB FOR (2) H209378)
10 28H1941 Bushing 2 X X 0.364" X 0.540" X 1-1/4"
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 24M7207 Washer 2 X X 8.400 X 24 X 2 mm
12 19M8319 Screw 2 X X M8 X 50
13 AH209872 Linkage 1 X X
14 ET11380 Cap Screw 1 X X
15 H218231 Block Clamp 1 X X
16 19M8300 Screw 1 X X M8 X 40
17 H209379 Grommet 2 X X
18 AH211619 Latch 1 X X
19 H169568 Screw 2 X X
20 24M7178 Washer 2 X X 10.500 X 30 X 2.500 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 11M7059 Cotter Pin 2 X X 3.200 X 20 mm
22 H211681 Strap 1 X X
23 24M7047 Washer 2 X X 13 X 24 X 2.500 mm
24 R38371 Washer 1 X X

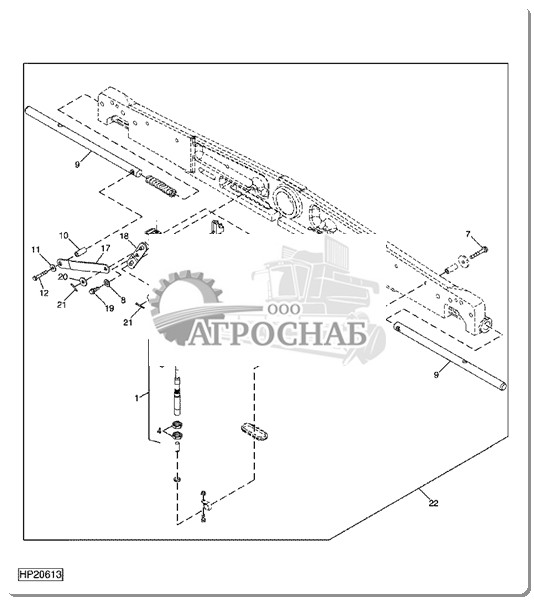

HEADER LATCHING MECHANISM (CONTOUR MASTER) RETROFIT KIT

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH212083 Push Pull Cable 1 X X
2 H208005 Pivot 1 X X
3 14M7152 Nut 1 X X M10
4 14M7335 Nut 2 X X M20
5 19M7787 Screw 2 X X M12 X 20
6 24H1252 Washer 2 X X 1/2" X 1-1/2" X 0.060"
7 19M7815 Screw 2 X X M12 X 60
8 24M7047 Washer 2 X X 13 X 24 X 2.500 mm
9 H209378 Pin Fastener 2 X X
10 28H1941 Bushing 2 X X 0.364" X 0.540" X 1-1/4"
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 24M7207 Washer 2 X X 8.400 X 24 X 2 mm
12 19M8319 Screw 2 X X M8 X 50
13 AH209872 Linkage 1 X X
14 ET11380 Cap Screw 1 X X
15 H218231 Block Clamp 1 X X
16 19M8300 Screw 1 X X M8 X 40
17 H211681 Strap 1 X X
18 AH211619 Latch 1 X X
19 H169568 Screw 2 X X
20 24M7178 Washer 2 X X 10.500 X 30 X 2.500 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 11M7059 Cotter Pin 2 X X 3.200 X 20 mm
22 AH220955 Latch Kit 1 X X

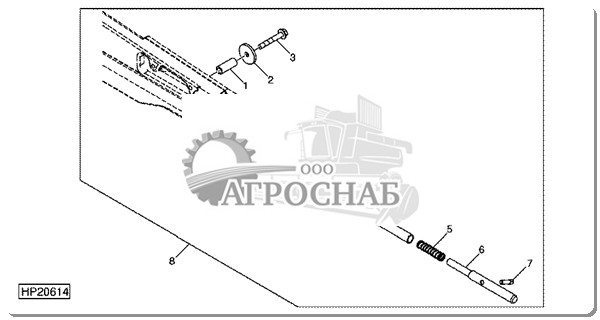

Manual Latching Pivot Beam Kit

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 28H3395 Bushing 2 X X 0.546" X 0.840" X 1-1/4"
2 E81185 Washer 2 X X
3 19M7815 Screw 2 X X M12 X 60
4 H212315 Pipe 1 X X
5 124424 Compression Spring 2 X X
6 H130040 Pin Fastener 2 X X
7 H149523 Bolt 2 X X
8 AH220954 Latch Kit 1 X X INCLUDES 19M7787 AND 24H1252
.. 19M7787 Screw 1 X X M12 X 20
.. 24H1252 Washer 1 X X 1/2" X 1-1/2" X 0.060"

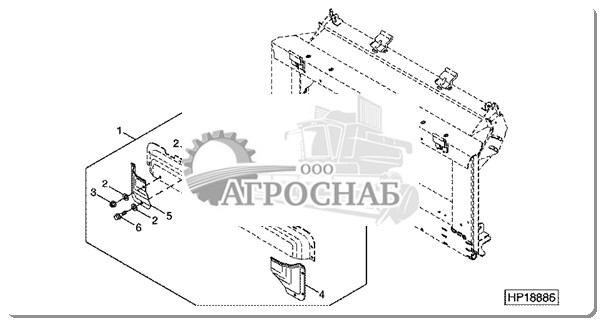

Drum Deflector Kit

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH225488 Kit 1 X X ORDER AH231067
2 24M7178 Washer 12 X X 10.500 X 30 X 2.500 mm
3 H135891 Lock Nut 2 X X
4 H220903 Deflector 1 X X
5 H220904 Deflector 1 X X
6 19M7786 Screw 6 X X M10 X 30

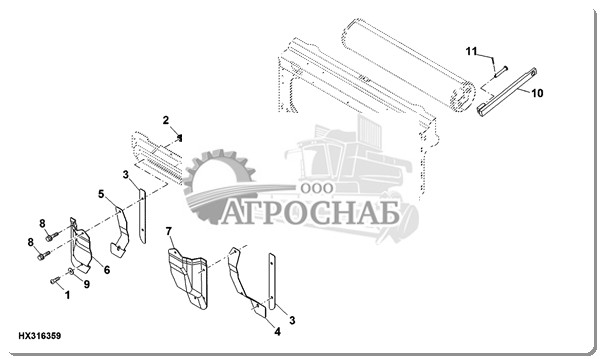

DRUM DEFLECTOR KIT

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 21M7584 Screw 4 M10 X 35
2 H135891 Lock Nut 2
3 H228203 Strap 2
4 H232407 Solid Shim 1
5 H232406 Solid Shim 1
6 H232821 Deflector 1
7 H232820 Deflector 1
8 19M7786 Screw 6 M10 X 30
9 24M7178 Washer 10 10.500 X 30 X 2.500 mm
10 AH226296 Arm 2
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 11M7059 Cotter Pin 2 3.200 X 20 mm
.. AH231067 Deflector Kit 1

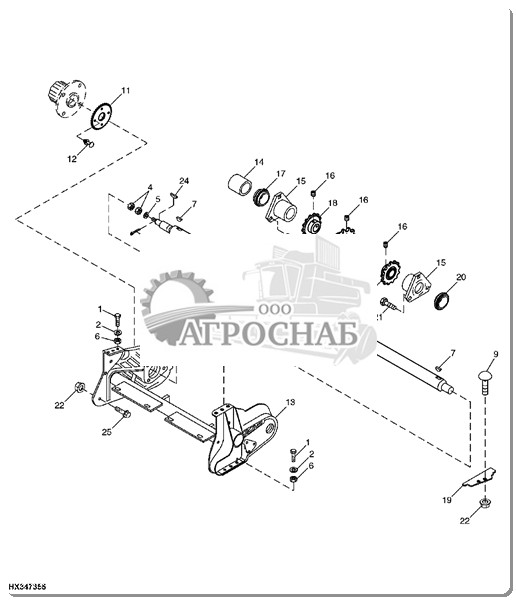

Feeder House Upper Shaft

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M8002 Cap Screw 12 X X M20 X 55
2 24M7242 Washer 12 X X 21.400 X 42 X 5 mm
3 11M7032 Cotter Pin 1 X X 5 X 50 mm High Capacity
4 14M7278 Nut 2 X X M24
A31871 Lock Nut 2 X X
14M7189 Nut 2 X X M24 High Capacity
5 A58549 Washer 1 X X High Capacity
6 14M7300 Flange Nut 12 X X M20
7 H156578 Shaft Key 2 X X
8 H159616 Chain Sprocket 1 X X Z = 13
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 03M7191 Bolt 4 X X M10 X 25
10 H156579 Shaft Key 1 X X
11 H119709 Chain Sprocket 1 X X Z = 34
12 03M7200 Bolt 4 X X M12 X 40
14M7299 Flange Nut 4 X X M12
13 AH167128 Pivot 1 X X Fixed Speed
AH167127 Pivot 1 X X Variable Speed
14 H143354 Spacer 1 X X
15 H147593 Housing 2 X X
16 H156580 Set Screw 8 X X M12 X 16
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
17 JD10020 Ball Bearing 1 X X
18 H159615 Chain Sprocket 2 X X Z = 13
19 H147482 Bracket 2 X X
20 JD9373 Ball Bearing 1 X X
21 19M7789 Screw 6 X X M12 X 30
22 14M7296 Flange Nut AR X X M10
23 H156576 Shaft 1 X X W/O Splines
H203850 Shaft 1 X X 21 Splines High Capacity
24 26H103 Shaft Key 1 X X 1/4" X 2-1/8"
25 19M7785 Screw 4 X X M10 X 25

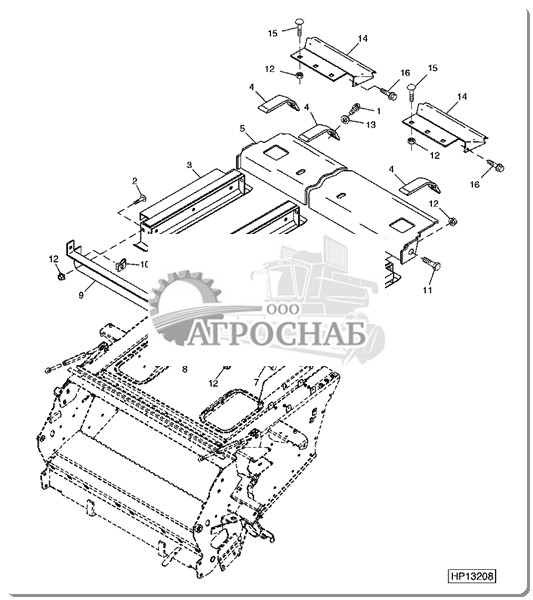

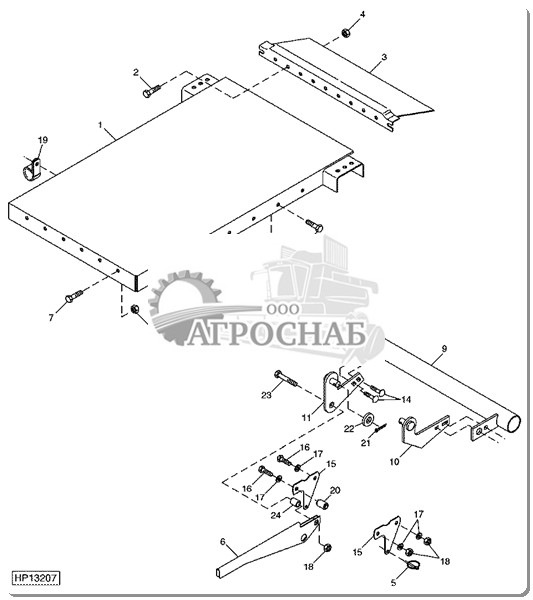

Feeder House Floor and Latch Handle

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AXE24554 Floor 1 X X (SUB FOR AXE15498)
2 03M7190 Bolt 8 X X M10 X 20
3 H173904 Seal 1 X X
4 14M7296 Flange Nut 8 X X M10
5 AA21292 Quick Lock Pin 1 X X
6 H132986 Handle 1 X X
7 19M7789 Screw 16 X X M12 X 30
8 14M7299 Flange Nut 16 X X M12
9 AH165618 Support 1 X X
10 AH147475 Arm 1 X X LH
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH147474 Arm 1 X X RH
12 H97322 Cam 2 X X
13 14M7299 Flange Nut 4 X X M12
14 19M7790 Screw 4 X X M12 X 35
15 H202257 Strap 2 X X
16 19M8318 Screw 2 X X M8 X 45
17 24M7207 Washer 4 X X 8.400 X 24 X 2 mm
18 H137328 Lock Nut 3 X X
19 AH77279 Clip AR X X
20 H132988 Bushing 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 11M7028 Cotter Pin 2 X X 5 X 32 mm
22 24M7053 Washer 2 X X 17 X 30 X 3 mm
23 19M8291 Screw 1 X X M8 X 35
24 H133060 Sleeve 1 X X

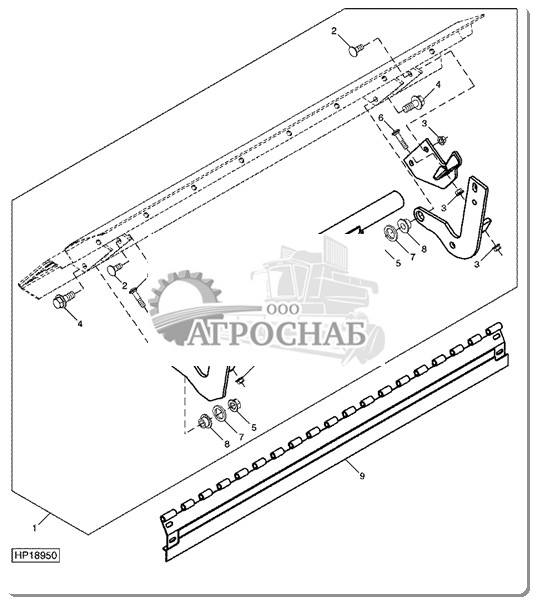

Heavy Duty Feed Plate Latch Kit

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH218942 Kit 1 X X ORDER KXE10485
2 03M7198 Bolt 4 X X M12 X 30
3 14M7299 Flange Nut 8 X X M12
4 19M7793 Screw 2 X X M16 X 40
5 14M7291 Flange Nut 2 X X M16
6 03M7203 Bolt 2 X X M12 X 55
7 24M7091 Washer 2 X X 26 X 44 X 4 mm
8 H131087 Bushing 2 X X
9 AH211632 Hinge 1 X X

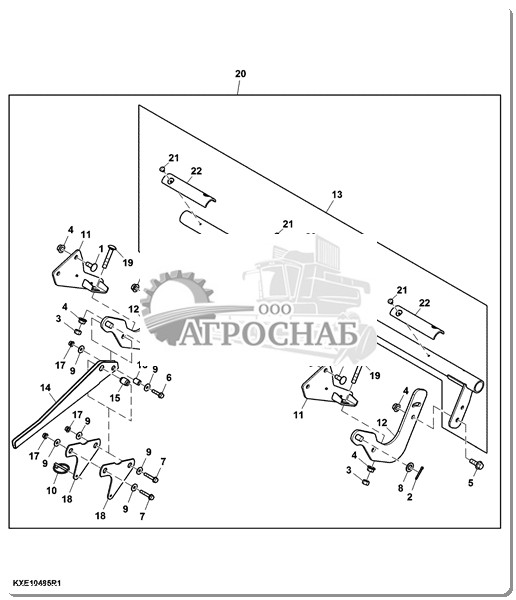

Feeder House Feed Plate Latch, Heavy Duty

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 03M7198 Bolt 4 M12 X 30
2 11M7028 Cotter Pin 2 5 X 32 mm
3 14M7275 Nut 2 M12
4 14M7299 Flange Nut 10 M12
5 19M7790 Screw 4 M12 X 35
6 19M8291 Screw 1 M8 X 35
7 19M8318 Screw 2 M8 X 45
8 24M7053 Washer 2 17 X 30 X 3 mm
9 24M7207 Washer 6 8.400 X 24 X 2 mm
10 AA21292 Quick Lock Pin 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 AXE60852 Bracket 2
12 AXE60881 Arm 2
13 AXE71781 Support 1 SUB FOR AXE60923 OR AXE68979
14 H132986 Handle 1
15 H132988 Bushing 1
16 H133060 Sleeve 1
17 H137328 Lock Nut 3
18 H202257 Strap 2
19 HXE115427 Bolt 2
20 KXE10485 Latch Kit 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
21 M64720 Rivet 6
22 HXE132799 Support 3

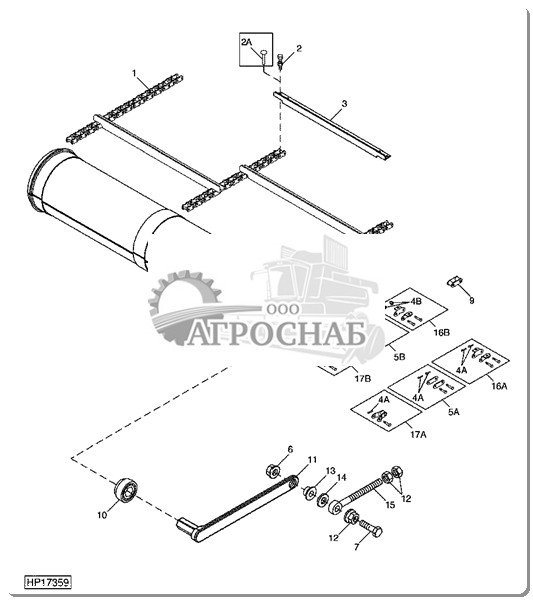

Feeder Conveyor Idler Shaft, Drum And Chain ( - 711301)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH217633 Link Chain 1 X X SUB FOR AH209913, AH2176 32, AH212232 OR AH209915
2 19M7881 Screw AR X X M8 X 20
14M7426 Lock Nut AR X X M8
2A 16H1083 Rivet AR X X 5/16" X 5/8"
3 H206436 Slat 30 X X
4A H204865 Hook AR X X
4B H226769 Nut AR X X
5A AH209907 Chain Link 3 X X SUB AH220541
5B AH220541 Chain Link 3 X X
6 14M7589 Lock Nut 2 X X M16 SUB FOR W39621
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
7 19M8349 Cap Screw 2 X X M16 X 90
8 AH212359 Drum 1 X X SUB FOR AH166837 ) (SUB AH218323, H218671, (2) AH218367, (2) 45M7040 AND (2) 11M7059
9 AH209911 Chain Link AR X X
10 JD9373 Ball Bearing 2 X X USE WITH AH166837, AH212 359, AH202440 OR AH212361
AE46606 Ball Bearing 2 X X USE WITH AH218323 OR AH218320
11 H172476 Arm 2 X X (A)
H213921 Arm 2 X X (B)
12 14M7291 Flange Nut 6 X X M16
13 H131087 Bushing 2 X X
14 24H1368 Washer 2 X X 21/32" X 1-5/16" X 0.090"
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
15 H131088 Eyebolt 2 X X
16A AH217631 Chain Link AR X X (SUB AH221002 ) (SUB FOR AH209910)
16B AH221002 Chain Link AR X X
17A AH209908 Chain Link AR X X (SUB AH220867)
17B AH220867 Chain Link AR X X

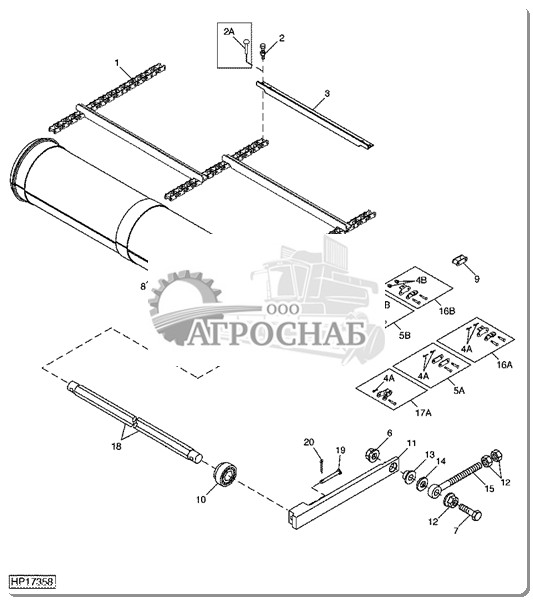

Feeder Conveyor Idler Shaft, Drum And Chain (711302 - 720300)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH217633 Link Chain 1 X X (SUB FOR AH209913, AH2176 32, AH212232 OR AH209915)
2 19M7881 Screw AR X X M8 X 20
14M7426 Lock Nut AR X X M8
2A 16H1083 Rivet AR X X 5/16" X 5/8"
3 H206436 Slat 30 X X
4A H204865 Hook AR X X
4B H226769 Nut AR X X
5A AH209907 Chain Link 3 X X (SUB AH220541)
5B AH220541 Chain Link 3 X X
6 14M7589 Lock Nut 2 X X M16 (SUB FOR W39621)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
7 19M8349 Cap Screw 2 X X M16 X 90
8 AH218323 Drum 1 X X (SUB FOR AH166837)
9 AH209911 Chain Link AR X X
10 AE46606 Ball Bearing 2 X X
11 AH218367 Arm 2 X X
12 14M7291 Flange Nut 6 X X M16
13 H131087 Bushing 2 X X
14 24H1368 Washer 2 X X 21/32" X 1-5/16" X 0.090"
15 H131088 Eyebolt 2 X X
16A AH217631 Chain Link AR X X (SUB AH221002 ) (SUB FOR AH209910)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
16B AH221002 Chain Link AR X X
17A AH209908 Chain Link AR X X (SUB AH220867)
17B AH220867 Chain Link AR X X
18 H218671 Bar 1 X X
19 45M7040 Pin Fastener 2 X X 10 X 60 mm
20 11M7059 Cotter Pin 2 X X 3.200 X 20 mm

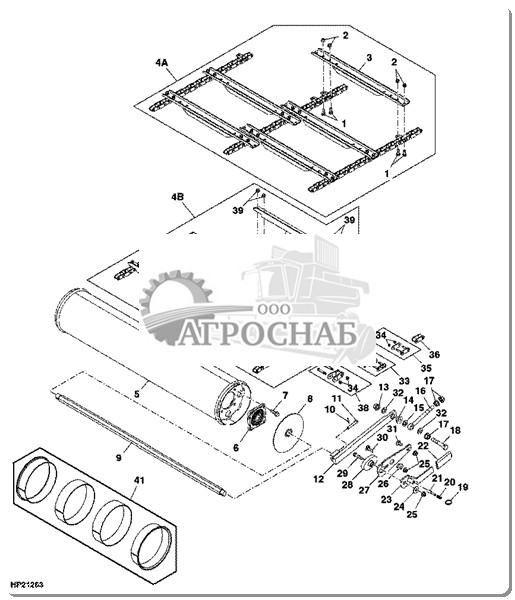

Feeder Conveyor Idler Shaft, Drum And Chain (720301 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7938 Cap Screw AR X X M10 X 20
2 14M7517 Lock Nut AR X X M10
3 AH220056 Slat 24 X X (C)
4A AXE12764 Link Chain 1 X X (C) (SUB FOR AH220517 OR AH229908)
4B AH224926 Link Chain 1 X X
5 AH220242 Drum 1 X X
6 AH219987 Bearing With Housing 2 X X
7 19M7790 Screw 8 X X M12 X 35
8 AH220241 Bearing Cap 1 X X
9 H218671 Bar 1 X X 31.750 X 1335 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 11M7059 Cotter Pin 2 X X 3.200 X 20 mm
11 45M7040 Pin Fastener 2 X X 10 X 60 mm
12 AH219332 Arm 2 X X
13 14M7589 Lock Nut 2 X X M16
14 H131087 Bushing 2 X X
15 24H1368 Washer 2 X X (A) 21/32" X 1-5/16" X 0.090"
24M7525 Washer 2 X X (B) 17 X 50 X 3 mm
16 H131088 Eyebolt 2 X X
17 14M7291 Flange Nut 6 X X M16
18 19M8349 Cap Screw 2 X X (A) M16 X 90
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19M9313 Cap Screw 2 X X (B) M16 X 110
19 H174818 Ring 2 X X
20 R28783 Compression Spring 2 X X
21 H174817 Pin 2 X X
22 W25634 Grip 2 X X
23 H226362 Handle 2 X X (SUB FOR AH217527)
24 24M7180 Washer 2 X X 13 X 37 X 3 mm
25 14M7299 Flange Nut 2 X X M12
26 H97322 Cam 2 X X
27 H213285 Plate 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
28 H217779 Stop 2 X X
29 19M7182 Cap Screw 2 X X M12 X 50
30 03M7199 Bolt 2 X X M12 X 35
31 03M7197 Bolt 2 X X M12 X 25
32 24M7241 Washer 4 X X (B) 17 X 34 X 4 mm
33 AH221002 Chain Link AR X X (D)
AH220868 Chain Link AR X X (C)
34 H226769 Nut AR X X M8
35 AH220541 Chain Link AR X X
36 AH209911 Chain Link AR X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
37 H206436 Slat 30 X X
38 AH220867 Chain Link AR X X
39 14M7426 Lock Nut AR X X M8
40 19M7881 Screw AR X X M8 X 20
41 AH231058 Ring Kit 1 X X WELDING REQUIRED

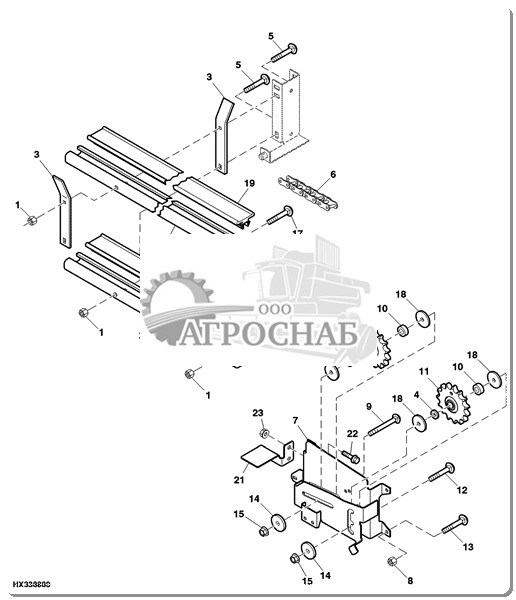

Feeder Conveyor Drive Chain and Idler Bracket

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H135891 Lock Nut 4 X X
2 H172472 Support 1 X X 357MM
3 H162320 Plate 2 X X
H234585 Plate 2 X X (A) (USE WITH AH216585) (SUB FOR H206222)
4 24M7053 Washer 2 X X 17 X 30 X 3 mm
5 03M7233 Bolt 2 X X M10 X 70
6 AH206862 Roller Chain 1 X X L=187
AH206701 Link Chain 1 X X (A) L=192
7 AH216585 Bracket 1 X X (SUB FOR AH206474)
8 14M7299 Flange Nut 4 X X M12
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 03M7212 Bolt 1 X X M16 X 80
10 24H1698 Washer 2 X X 21/32" X 1-5/8" X 1/4"
11 AFH205780 Idler Sprocket 2 X X Z = 15, SUB FOR AE27909
12 19M7827 Screw 1 X X M16 X 80
13 03M7198 Bolt 2 X X M12 X 30
03M7197 Bolt 2 X X M12 X 25
14 24M7103 Washer 2 X X 17.500 X 56 X 5 mm
15 14M7291 Flange Nut 2 X X M16
16 H172475 Guide 1 X X 357MM
17 03M7218 Bolt 2 X X M10 X 80
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18 H129716 Washer 4 X X
19 H234587 Guide 1 X X 656MM, (SUB FOR H172474)
20 H234586 Support 1 X X 656MM, (SUB FOR H172471)
21 H216660 Support 1 X X (USE WITH AH216585)
22 03M7184 Bolt 2 X X M8 X 20
23 14M7298 Flange Nut 4 X X M8
.. BH84459 Complete Goods/Ship. Bundle 1 X X (B)

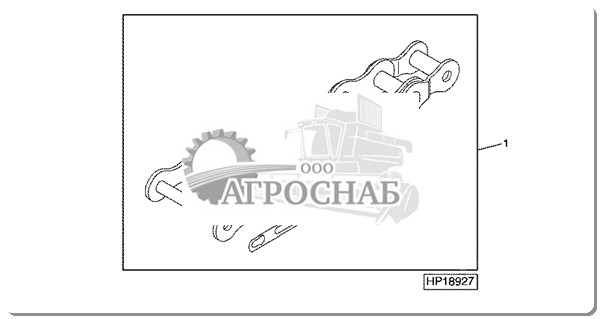

FEEDER CONVEYOR DRIVE CHAIN KIT (5 LINKS)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH224335 Link Chain 1 X X
2 AH224417 Link Chain 1 X X L = 4

Feeder House Return Floor

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7783 Screw 3 X X M10 X 16
2 03M7190 Bolt AR X X M10 X 20
3 AH155035 Runner 2 X X
4 H171960 Strip 3 X X
5 AH149680 Support 1 X X
6 AH155034 Runner 1 X X
7 19M7785 Screw 4 X X M10 X 25
8 03M7192 Bolt 2 X X M10 X 30
14M7296 Flange Nut 2 X X M10
9 H143358 Channel 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 H146457 Nut 2 X X
11 19M7789 Screw 2 X X M12 X 30
12 14M7296 Flange Nut AR X X M10
13 24M7226 Washer 3 X X 13 X 35 X 5 mm
14 H157152 Stripper 2 X X
15 03M7191 Bolt 6 X X M10 X 25
16 19M7785 Screw 4 X X M10 X 25

Feeder House Position Sensor

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H156936 Bracket 1 X X
2 R41076 Grommet 1 X X
3 R111692 Shaft 1 X X
4 R26871 Snap Ring 1 X X
5 R112679 Seal 1 X X
6 H166313 Lever 1 X X
7 P48347 O-Ring 2 X X
8 R86457 Support 1 X X
9 AT333680 Sensor 1 X X SUB FOR RE56165; SUB FOR APPL RE261354
10 21M7261 Screw 2 X X M5 X 45
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 14M7297 Nut 2 X X M5
12 AH150499 Tie Rod Assembly 1 X X
13 H172460 Bracket 1 X X
14 37M7084 Screw 2 X X M8 X 25
15 34H305 Spring Pin 1 X X 7/32" X 2"
16 14M7397 Lock Nut 1 X X M6

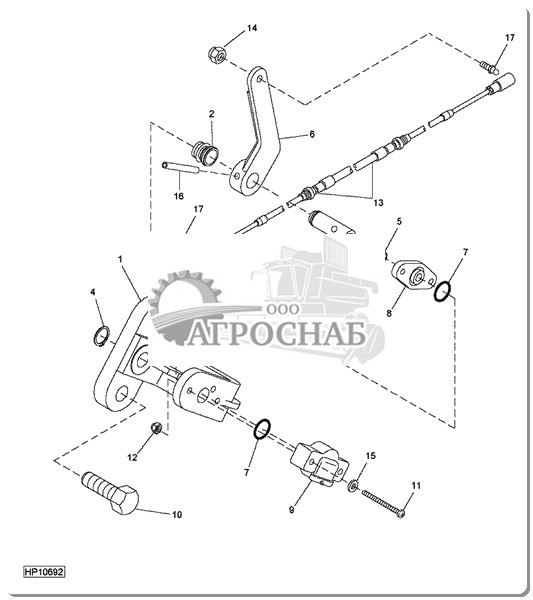

Lateral Tilt Position Sensor

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H156936 Bracket 1 X X
2 R41076 Grommet 1 X X
3 R111692 Shaft 1 X X
4 R26871 Snap Ring 1 X X
5 R112679 Seal 1 X X
6 H166313 Lever 1 X X SUB FOR APPL R40915
7 P48347 O-Ring 2 X X
8 R86457 Support 1 X X
9 AT333680 Sensor 1 X X SUB FOR RE56165; SUB FOR APPL RE261354
10 37M7084 Screw 2 X X M8 X 25
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 21M7261 Screw 2 X X M5 X 45
12 14M7297 Nut 2 X X M5
13 AH162586 Cable 1 X X
14 14M7397 Lock Nut 1 X X M6
15 12M7060 Washer 2 X X 5.300 mm
16 34H305 Spring Pin 1 X X 7/32" X 2"
17 H168732 Ball Stud 2 X X

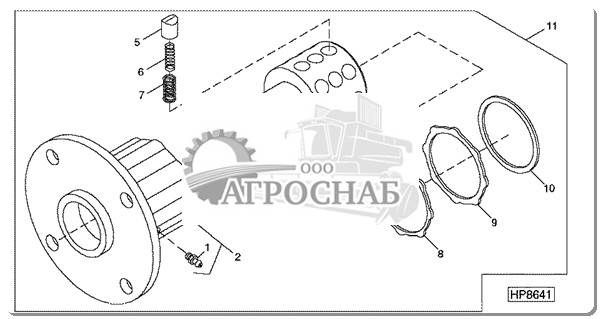

Slip Clutch (Radial Pin) (900 NM)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H168925 Lubrication Fitting 2 X X
2 AH161454 Housing 1 X X
3 E77072 Bushing 1 X X
4 H167975 Hub 1 X X (USE WITH AH155409)
H205556 Hub 1 X X (USE WITH AH203190)
5 M86290 Cam 24 X X
6 M86292 Compression Spring 24 X X
7 M86291 Compression Spring 24 X X
8 M86293 Ring 1 X X
9 M86294 Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 M86295 Ring 1 X X
11 AH155409 Slip Clutch 1 - 706400
AH155409 Slip Clutch 1 - 705938
AH203190 Slip Clutch 1 706401 -
AH203190 Slip Clutch 1 705939 -

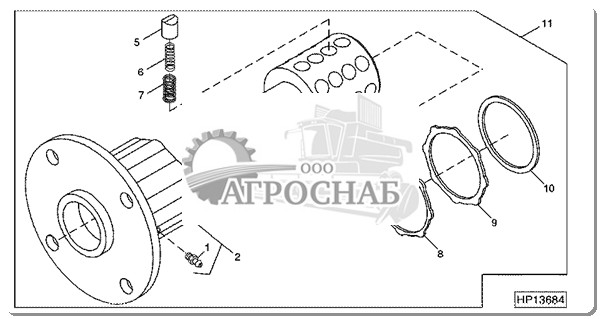

Slip Clutch (Radial Pin) (1050 NM) (Optional) (Grain Combines)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H168925 Lubrication Fitting 1 X X
2 ...... Housing 1 X X
3 E77072 Bushing 1 X X
4 ...... Hub 1 X X
5 M86290 Cam 32 X X
6 M86292 Compression Spring 25 X X
7 M86291 Compression Spring 32 X X
8 M86293 Ring 1 X X
9 M86294 Ring 1 X X
10 M86295 Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH203192 Slip Clutch 1 X X

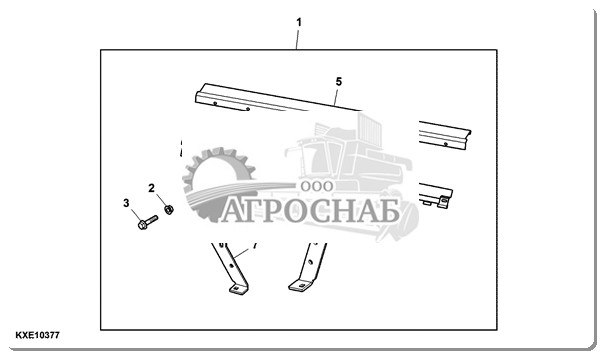

Feed Floor Kit, High Moisture Corn Attachment

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 KXE10377 Feeder House 1
2 14M7296 Flange Nut 6 M10
3 19M7805 Screw 6 M10 X 45
4 AXE53700 Hinge 1
5 HXE95169 Seal 1
6 HXE95170 Bracket 1 RH
7 HXE95171 Bracket 1 LH

???µN???N?N?N?N?N? ???° ???»?°????N?N? N?N?N??°????N?N?
